Dial Sheet Gauges ; Dimensions |
|
|

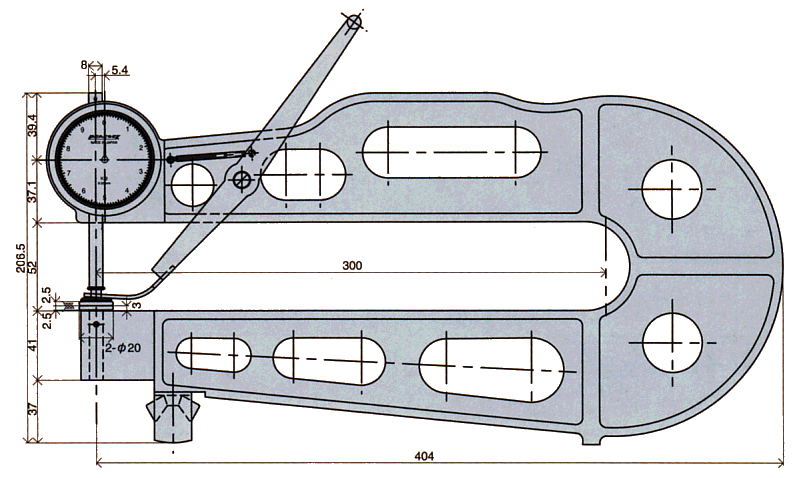

 Dimensions; K-1 |
|
|
|
|
|

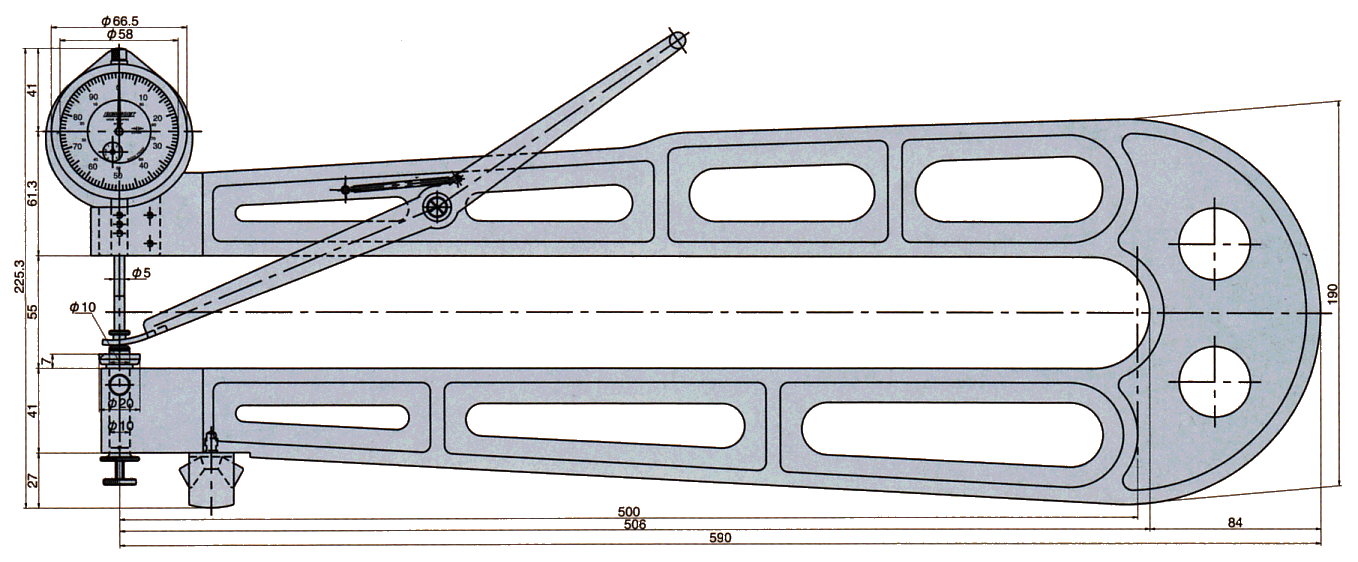

Dimensions; K-2 |
|
|
|
|
|

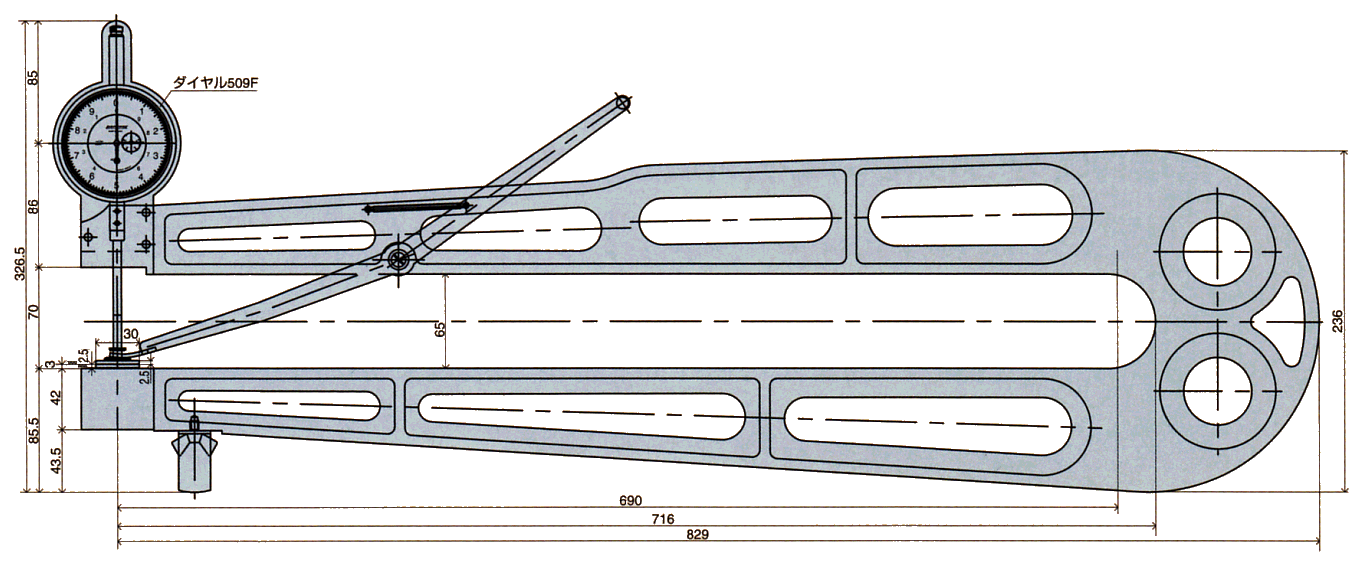

Dimensions; K-3 |
|
|
|
|
|

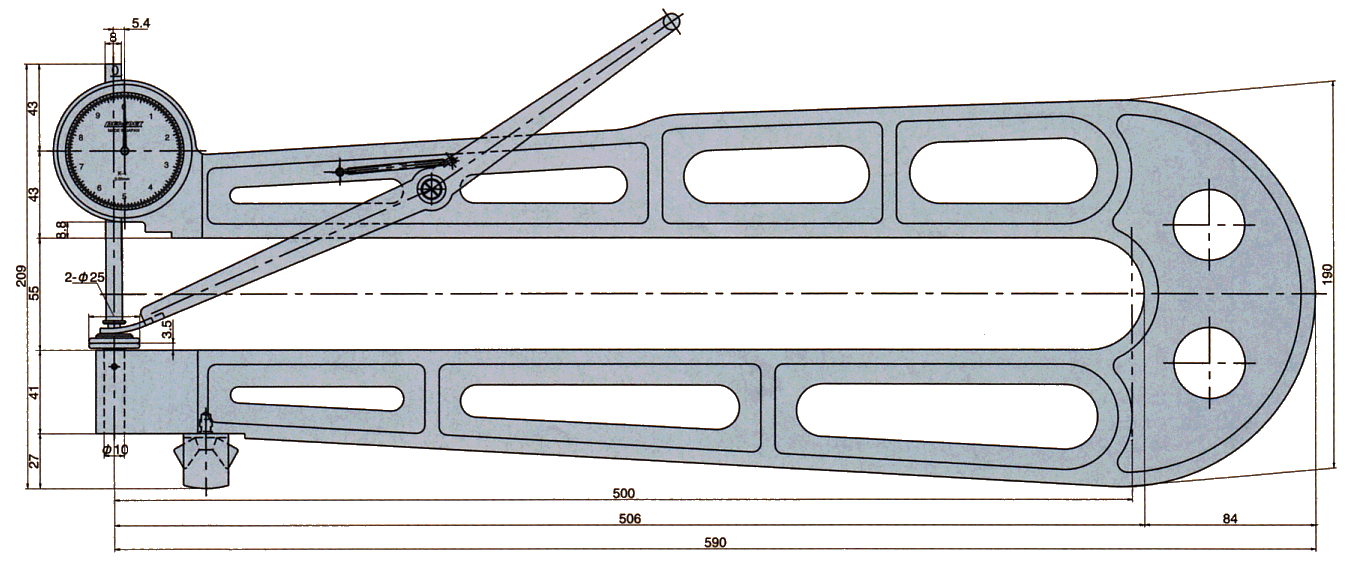

Dimensions; K-4 |
|
|
|
|
|

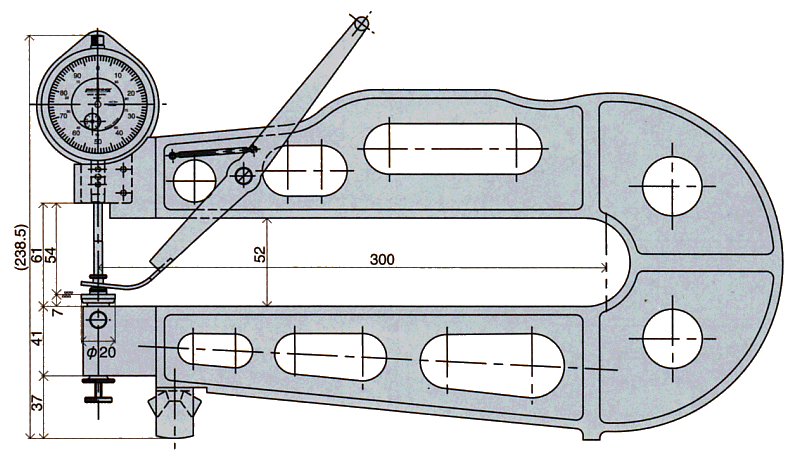

Dimensions; K-7 ( Discontinued ) |
|
|
|
 |
|
