| Specifications (SVH-100/SVH-70) | |||||
| Model | Base Length | Base Width | Inclination Indicated by 1 Tick |
Measurement Range |
Main Unit Weight |
| SVH-100 | 1000mm | 40mm | 1mm/m | 15 ticks in both direction |
Approx. 1.1Kg |
| SVH-70 | 700mm | 40mm | 1mm/m | 15 ticks in both direction |
Approx. 0.8Kg |

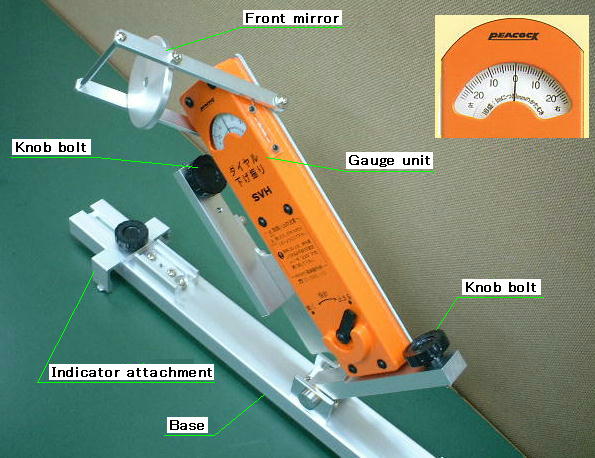

| [Accessories] * The front mirror enables easy measurement when levelness is seen with the tool on the floor or when measurement is taken in places where the main unit must face the other way. (Standard accessory) * Indicator attachment can be attached on both ends of the base to take measurement while avoiding projections on floor, pillars, or walls. (Standard accessory for SVH-70, not included in SVH-100) * Knob bolt can be loosened to facilitate easy vertical/horizontal setup of the gauge unit. (Standard accessory) * Storage case is made of aluminum. (Standard accessory) |
|||||
 |
|||||
