Long Travel Dial Gauges; 0.01mm, 0.05mm, and 0.1mm
JIS B 7503 : 2017

Dial Gauges are widely used manufacturing plants.
The stem, made of SK quench hardened with strength, is malfunction-free due to fastening.
The shock-proof mechanism prevents gears from damage due to shocks arisen by abruptly
pushing up the spindle.
The turning section of the outer frame sealed by the O-ring and the back inside sealed by
the packing are waterproof and dust-proof in construction.
The back is increased in strength by four screws, and the lug can be turned 90 degrees in
the installation way.
Long Travel Dial Gauges; 0.01mm, 0.05mm, and 0.1mm
Model 207
Graduation 0.01mm
Range 20mm
Lug back

207
Model 207F-T
Graduation 0.01mm
Range 20mm
Reversed dial
Flat back
207F-T
Model 207F-PL
Graduation 0.01mm
Range 20mm

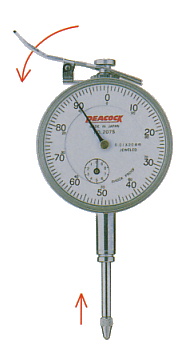

Pump type spindle lifting lever
Flat back
207F-PL
Model 207S-LL
Graduation 0.01mm
Range 20mm
Spindle lifting lever ( LL-1 )
Small dial face type ( Ø53mm )
Lug back
207S-LL
Model 207S
Graduation 0.01mm
Range 20mm
Small dial face type ( Ø53mm )
Lug back


207S
Model 207W
Graduation 0.01mm
Range 20mm
Tow center pointers
  (The hand is long enough to
  facilitate easy reading of
  measured values.)
Lug back
207W
Model 207WF-T
Graduation 0.01mm
Range 20mm
Tow center pointers
  (The hand is long enough to
  facilitate easy reading of
  measured values.)
Reversed dial
Flat back
207WF-T
Model 307S
Graduation 0.01mm
Range 30mm
Small dial face type ( Ø57mm )
Contact point ( X-2 )
Lug back
307S
Model 307
Graduation 0.01mm
Range 30mm
Lug back
Stem Ø8mm


307
Model 509
Graduation 0.05mm
Range 50mm
Lug back
Stem Ø10mm
509
Model 507
Graduation 0.01mm
Range 50mm
Lug back
Stem Ø10mm
507
Model 809
Graduation 0.1mm
Range 80mm
Lug back
Stem Ø14mm


809

Specifications
Model Graduation
(mm)		 Range
(mm)		 Reading Indication error (MPE) (µm) Hysteresis
error
(µm)		 Repeatability
(µm)		 Measuring
force less
than (N)
Revolution Whole
measuring
range
1/10 1/2 One
207 0.01 20 ±0 -50- 100 8 10 15 25 5 4 2.0
207F-T 0.01 20 ±100 -50- 0 8 10 15 25 5 4 2.0
207F-PL 0.01 20 ±0 -50- 100 8 10 15 25 5 4 2.0
207S-LL 0.01 20 ±0 -50- 100 8 10 15 25 5 4 2.0
207S 0.01 20 ±0 -50- 100 8 10 15 25 5 4 2.0
207W 0.01 20 ±0 -50- 100 8 10 15 25 5 4 2.0
207WF-T 0.01 20 ±100 -50- 0 8 10 15 25 5 4 2.0
307S 0.01 30 ±0 -50- 100 10 12 15 30 7 5 2.2
307 0.01 30 ±0 -50- 100 10 12 15 30 7 5 2.2
507 0.01 50 ±0 -50- 100 10 12 15 40 8 5 2.5
509 0.05 50 ±0 -5- 10 30 60 100 100 10 20 2.5
809 0.1 80 ±0 -5- 10 50 -- -- 100 -- 35 2.5
Replaceable contact points

Dimensions (mm)
Model A B C D E F G H I J
207 90 41 25 66.5 14.5 20 5 7.5 62.5 8.0
207F-PL 90 41 25 66.5 14.5 -- 5 7.5 62.5 8.0
207F-T 90 41 25 66.5 14.5 -- 5 7.5 62.5 8.0
207S-LL 75 50.5 18.5 53 14.5 20 4 6.5 49 8.0
207S 75 50.5 18.5 53 14.5 20 4 6.5 49 8.0
207W 75 50.5 17.5 55 17 20 4 6.5 49 8.0
207WF-T 75 50.5 17.5 55 17 -- 4 6.5 49 8.0
307S 107 89 22 57 17.5 20 5 7 52 8.0
307 102 46 22.8 75.5 17.5 21 5 8 72.5 8.0
507 128 81.5 26.7 81.5 17.5 21.5 5.5 8.5 78.5 10.0
509 128 81.5 26.7 81.5 17.5 21.5 5.5 8.5 78.5 10.0
809 201.5 86.5 54 112 24 22.5 6 10 108 14.0
Dimensions
