Special Type Test Indicators

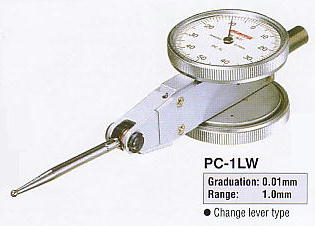

Double Dial Type ; PC-1LW
Discontinued
The conventional lever type dial gauge used to have some unreadable
points when aligning with it, which has made it impossible to do the
accurate aligning till now.
The double dial type Pic Test has two dials at both sides, making it
possible to cover said unreadable points by conventional Pic Tests.



Specifications
Model Graduation
(mm)
Range
(mm)
Reading Accuracy (µm) Measuring force
less than (N)
Wide-range forward
accuracy
Backward error
PC-1LW ;Discontinued 0.01 1.0 0-50-0 10 6 0.4

Sizes (mm)
Dimensions

L = 43.0
