![](01bul15.gif) |
Auto-reversing. |
![](01bul15.gif) |
Comes complete with .038", .078", .125" dia
hardch-romed contact points, Clamping bars,
wrench and three stems: 3/8", 1/4" and 5/32". |
![](01bul15.gif) |
180°swing on point and shaft. |
![](01bul15.gif) |
Fully jeweled movements. |
![](01bul15.gif) |
While face models have black needles, numbers
and graduations. Black face models have bright,
flourescent orange needles with white numbers
and graduations. |
![](01bul15.gif) |
Dial diameter is 1-3/8". |
![](01bul15.gif) |
Universal positioning capability. |
![](01bul15.gif) |
Dovetoils on top, back & front. |
![](01bul15.gif) |
Excellent rigid, and oil-proof construction. |
![](01bul15.gif) |
Non-magnetic |
|

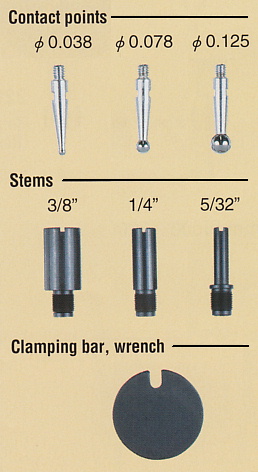

Set Configurations
![Set Configurations](pt_1020.jpg)
|
Pic Test Indicators ; Horizontal Type |

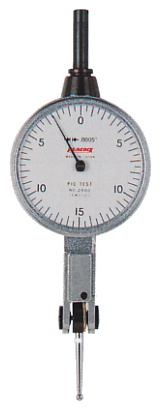

Model |
2000 |
Graduation |
0.0005" |
Range |
0.030" |
![2000](pt_1021.jpg)
|

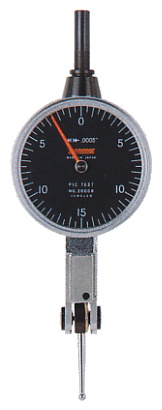

Model |
2000B |
Graduation |
0.0005" |
Range |
0.030" |
![2000B](pt_1022.jpg) |

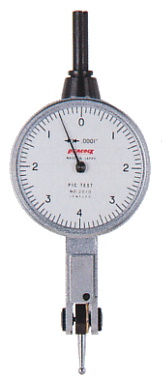

Model |
2010 |
Graduation |
0.0001" |
Range |
0.008" |
![2010](pt_1023.jpg) |

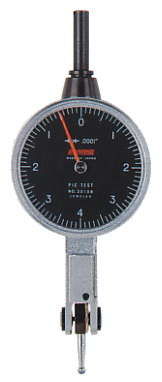

Model |
2010B |
Graduation |
0.0001" |
Range |
0.008" |
![2010B](pt_1024.jpg) |

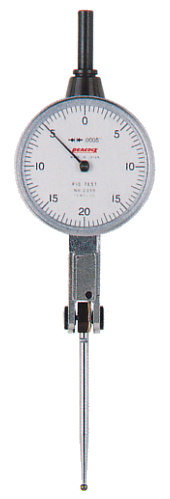

Model |
2030 |
Graduation |
0.0005" |
Range |
0.040" |
|
![2030](pt_1025.jpg) |
|

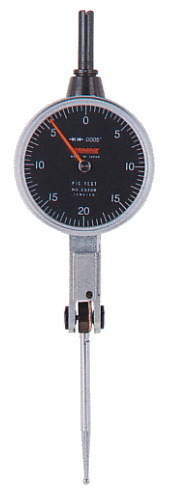

Model |
2030B |
Graduation |
0.0005" |
Range |
0.040" |
|
![2030B](pt_1026.jpg) |
|
Specifications |
White face
model No. |
Black face
model No. |
Measuring
range |
Graduation |
Reading |
Point length |
2000 |
2000B |
0.030" |
0.0005" |
0 - 15 - 0 |
0.750" |
2030 |
2030B |
0.040" |
0.0005" |
0 - 20 - 0 |
1.750" |
2010 |
2010B |
0.008" |
0.0001" |
0 - 4 - 0 |
0.375" |
| Page Top |
Pic Test Indicators ; Vertical Type |

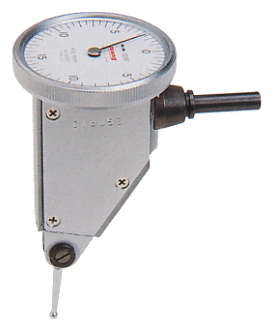

Model |
2050 |
Graduation |
0.0005" |
Range |
0.030" |
![2050](pt_1027.jpg)
|

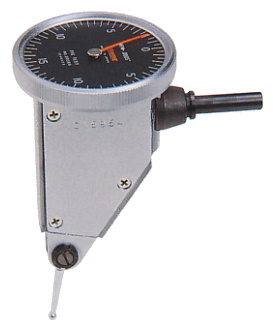

Model |
2050B |
Graduation |
0.0005" |
Range |
0.030" |
![2050B](pt_1028.jpg) |

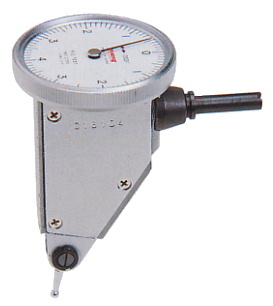

Model |
2060 |
Graduation |
0.0001" |
Range |
0.008" |
![2060](pt_1029.jpg)
|

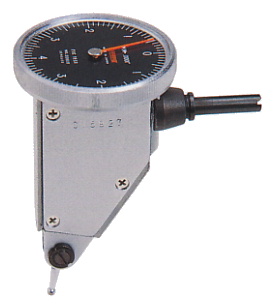

Model |
2060B |
Graduation |
0.0001" |
Range |
0.008" |
![2060B](pt_1030.jpg) |
Specifications |
White face
model No. |
Black face
model No. |
Measuring
range |
Graduation |
Reading |
Point length |
2050 |
2050B |
0.030" |
0.0005" |
0 - 15 - 0 |
0.750" |
2060 |
2060B |
0.008" |
0.0001" |
0 - 4 - 0 |
0.375" |
| Page Top |
Pic Test Indicators ; Large Dial Face Type |

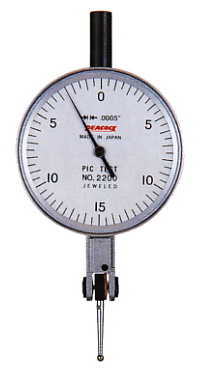

Model |
2200 |
Graduation |
0.0005" |
Range |
0.030" |
![2200](pt_1031.jpg)
|

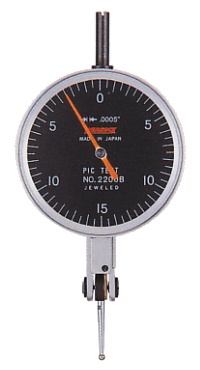

Model |
2200B |
Graduation |
0.0005" |
Range |
0.030" |
![2200B](pt_1032.jpg) |

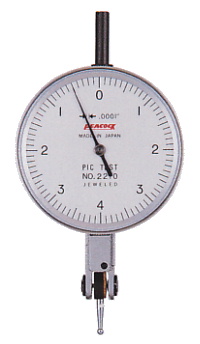

Model |
2210 |
Graduation |
0.0001" |
Range |
0.008" |
![2210](pt_1033.jpg)
|

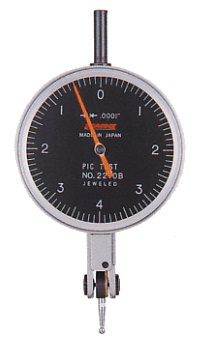

Model |
2210B |
Graduation |
0.0001" |
Range |
0.008" |
![2210B](pt_1034.jpg) |
Specifications |
White face
model No. |
Black face
model No. |
Measuring
range |
Graduation |
Reading |
Point length |
2200 |
2200B |
0.030" |
0.0005" |
0 - 15 - 0 |
0.750" |
2210 |
2210B |
0.008" |
0.0001" |
0 - 4 - 0 |
0.375" |
Large Dial Face Type
The dial plate size of 2200, 2200B, 2210, and 2210B models has been enlarged,
with easy reading due to the lager scale spacing, as a result. |

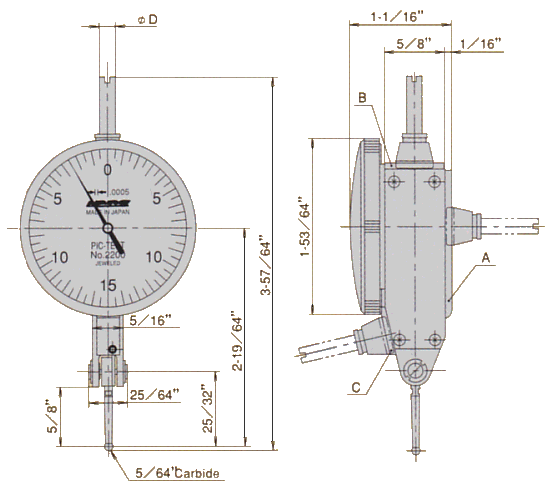

Dimensions ( 2200 / 2200B )
![Dimensions ; 2200 / 2200B](pt_1035.gif) |
|
|
