Inch Scale Dial Bore Gage Sets

HOME > Product Information > Inch Scale Dial Indicators

Dial Bore Gage Sets

	Each set includes a high quality ADG2 indicator with .0001" graduations.
	High precision, combined with ultra smooth movement, makes this the set for the most demanding users.
	Set comes complete with protective cover and fitted case.
	For close tolerance measurements of hole sizes, ID taper dimensions and roundness.
	Each set includes a reference chart, clearly specifying ring and rod sizes, for each measurement range.

Dial Bore Gage Sets

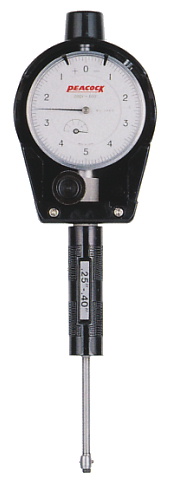

Model	5710
Range	0.25 - 0.4"

5710

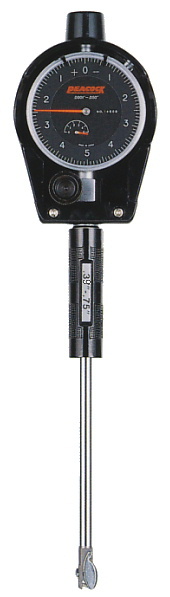

Model	5730B
Range	0.39 - 0.75"

5730B

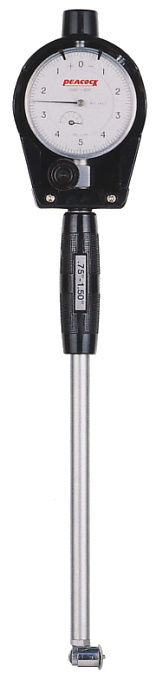

Model	5740
Range	0.75 - 1.50"

5740

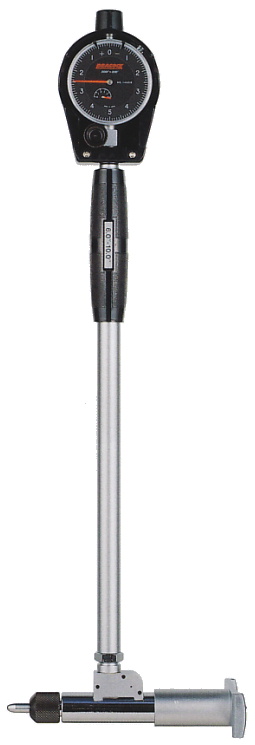

Model	5790B
Range	6.0 - 10.0"

5790B

Specifications
White face Model No.		Black face Model No.	Range	Wide range accuracy	Adjacent error	Repeated error	Length below Grip	Number of Feeler	Number of Spacer
5710		5710B	0.250" - 0.400"	.0002"	.00008"	.00008"	1-31/32"	8	--
5730		5730B	0.390" - 0.750"	.0002"	.00008"	.00008"	3-15/16"	10	1
5740		5740B	0.750" - 1.50"	.0002"	.00008"	.00008"	5-29/32"	8	2
5750		5750B	1.50" - 2.50"	.0002"	.00008"	.00008"	5-29/32"	6	2
5770		5770B	2.00" - 6.00"	.0002"	.00008"	.00008"	5-29/32"	11	2
5790		5790B	6.00" - 10.00"	.0002"	.00008"	.00008"	5-29/32"	9	4

\| HOME \| Product Information \| Inch Scale Dial Indicators \| INDEX: Model No. \|	\| Page Top \|


Design and specifications are subject to change without notice for future improvement.
