Digital Gauges Integrated Display Type


PDN series Digital Gauges
PDN-21 Integrated Display Type
PDN-CC for Cylinder Gauge
PDN-PP for measuring the height
of milling cutter
Dimensions

Model PDN-21
Resolution 0.001mm
( convertible to 0.01mm )
Range 0 - 20mm
Model PDN-51 (Discontinued)
Resolution 0.001mm
( convertible to 0.01mm )
Range 0 - 50mm
PDN-21 / PDN-51

Gauge Stand No.SIS-6C
Gauge Stand No.SIS-6C

Optional accessories ( for PDN-21 )
Flat Back No.GB-3D20 Finger Leve No.LL-D20 Release No.RE-4L Lifting Lever No.LL-PD
No.GB-3D20 No.LL-D20 No.RE-4 No.LL-PD

Optional accessories ( for PDN-21 & PDN-51 )
Input adapter No.IF-21 Foot switch No.FW-1
No.IF-21
Input adapter can send a
measuring data to a
spreadsheet program such
as EXCEL by exchanging to
keyboard signals.
( It connects USB port. )
No.FW-1

Specifications
Model PDN-21 PDN-51 (Discontinued)
Range 20mm 50mm
Resolution Convertible 0.01mm and 0.001mm ( Set 0.001mm at the time of shipment )
Accuracy
(excluding quantized error)
0.001mm Display: 0.003mm
0.01mm Display: 0.01mm
0.001mm Display: 0.004mm
0.01mm Display: 0.01mm
Measuring force Less than 1.5N
Without spring: less than 0.31N
Less than 4.0N
Without spring: less than 1.0N
Response speed 1000mm/sec
Contact point X-2 ( M2.5×0.45 ) X-9 ( M2.5×0.45 )
Display rotation 280º
Operating temperature 0 - 40ºC

Functions

Convertible 0.01mm and 0.001mm
Judgement    OK, ±NG   ( OK=Green ±NG=Red )
Counting direction Conversion

Data output RS-232C
Power supply (AC Adapter) AC100 - 240V }10%  50/60Hz
Accessories AC Adapter AC Adapter   Finger Lever No.LL-50

Options

for PDN-21 for PDN-21/51
Flat Back No.GB-3D20 Input adapter No.IF-21
Release No.RE-4L Foot switch No.FW-1
Finger Lever No.LL-D20 Change the measuring force
Lifting Lever No.LL-PD




Page Top |

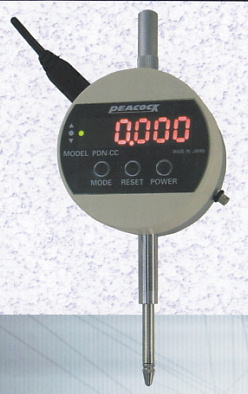

Model PDN-CC ( for Cylinder Gauge )
Resolution 0.001mm
( convertible to 0.01mm )
Range 0 - 20mm
PDN-CC
Specifications
Model PDN-CC
Range 20mm
Resolution Convertible 0.01mm and 0.001mm
( Set 0.001mm at the time of shipment )
Accuracy
(excluding quantized error)
0.001mm Display: 0.003mm
0.01mm Display: 0.01mm
Measuring force Less than 1.5N
Response speed 1000mm/sec
Display rotation 280º
Power supply (AC Adapter) AC100 - 240V }10%  50/60Hz
Operating temperature 0 - 40ºC
Data output RS-232C
Backs Flat Back ( GB-3D20 )

Functions

for Cylinder Gauge
Convertible 0.01mm and 0.001mm
Judgement    OK, ±NG
   ( OK=Green ±NG=Red )
Counting direction Conversion

Options Same as PDN-21

Cylinder Gauges which you have now can be attached to PDN-CC and measure.
( Cylinder Gauge is optional. )
Cylinder Gauges
"CC" series "CG" series
CC-02 6 - 10mm
CC-01 10 - 18mm CG-01 10 - 18mm
CC-1 18 - 35mm CG-1 18 - 35mm
CC-2 35 - 60mm CG-2 35 - 60mm
CC-3 50 - 100mm CG-3 50 - 100mm
CC-3C 50 - 150mm CG-3C 50 - 150mm
CC-4 100 - 160mm CG-4 100 - 160mm
CC-5 160 - 250mm CG-5 160 - 250mm
CC-6 250 - 400mm CG-6 250 - 400mm

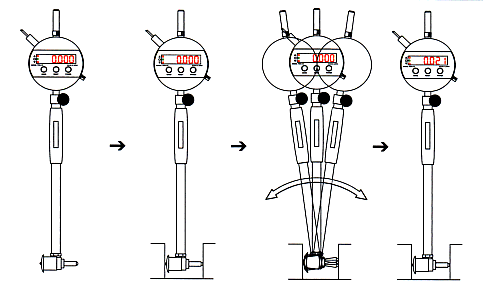

Example ( PDN-CC )
Example (PDN-CC)



Page Top |

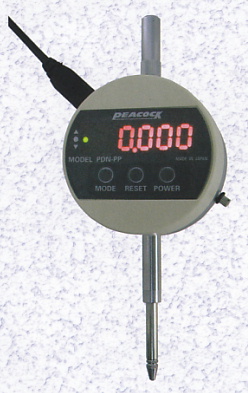

Model PDN-PP
( for measuring the height of
milling cutter )
Resolution 0.001mm
( convertible to 0.01mm )
Range 0 - 20mm
PDN-PP
Specifications
Model PDN-PP
Range 20mm
Resolution Convertible 0.01mm and 0.001mm
( Set 0.001mm at the time of shipment )
Accuracy
(excluding quantized error)
0.001mm Display: 0.003mm
0.01mm Display: 0.01mm
Measuring force Less than 1.5N
Response speed 1000mm/sec
Display rotation 280º
Power supply (AC Adapter) AC100 - 240V }10%  50/60Hz
Operating temperature 0 - 40ºC
Data output RS-232C

Functions

for measuring the height of
   milling cutter
Convertible 0.01mm and 0.001mm
Judgement    OK, ±NG
   ( OK=Green ±NG=Red )
Counting direction Conversion

Options Same as PDN-21

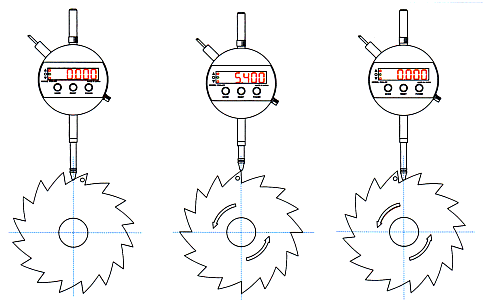

Example ( PDN-PP )
Example (PDN-PP)



Page Top |


Dimensions

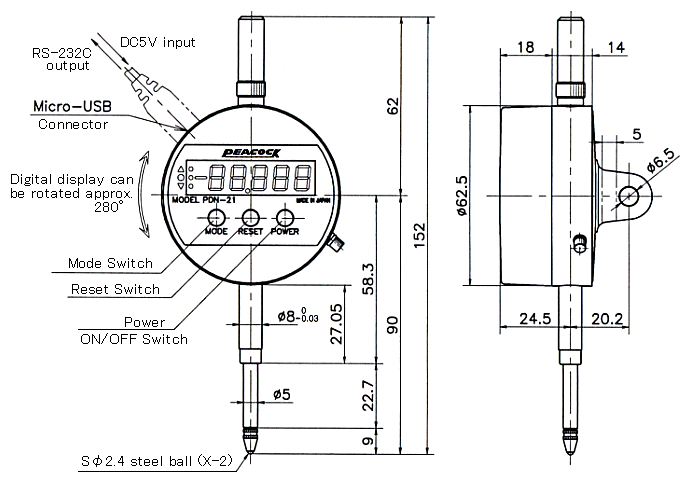

PDN-21 / PDN-CC / PDN-PP
Dimensions: PDN-21 PDN-CC PDN-PP

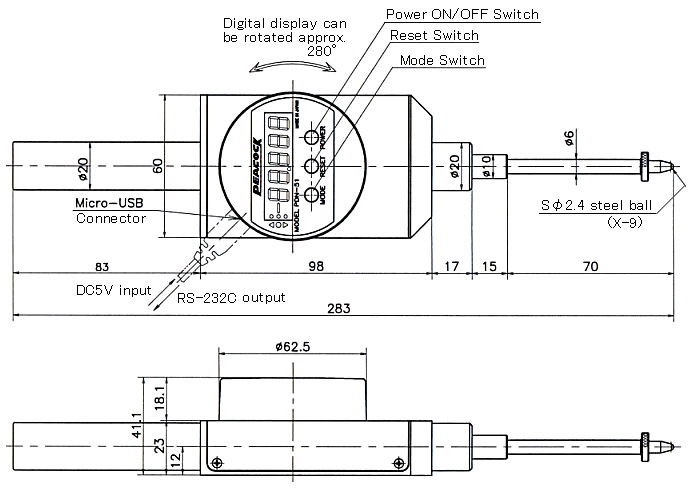

PDN-51 (Discontinued)
Dimensions: PDN-51
