Lever Type Dial Indicators ; PK-TEST



 First time in world 0.001mm Graduation with Long Contact Point (14.18mm)
It is possible to enable the longer contact point by New Mechanism.
  (Utility Model Registration No. 3206149)
Long Contact Point has a lot of flexibility to set and is easy to use.
Contact Point is selectable gCarbide ballh or gRuby ballh.

Lever Type Dial Indicators ; PK-TEST
Lever Type Dial Indicators ; PK-TEST
Contact Point gets longer. Hold by Dovetail Stem Prevent looseness by 3 points
   screws.

PK-TEST enables 6.05mm longer than
   the conventional 0.001mm Graduation
   type.

Contact Point gets longer.

Hold by attached Dovetail Stem in
    dovetail groove.
   Hold by 3 ways which is upper face,
    lower face and back face.
   There are 3 kinds of diameter 4,
    6 and 8mm.
   ( PK series is including 6mm as
    standard but you can also choose
    4 or 8mm. )

Hold by Dovetail Stem

In PK series, adopt new body and base
   metal for 3 points fixing screws from
   2 points fixing screws, which more
   strengthens the fixing force.


Prevent looseness by 3 points screws.

PK-SA(R) / PK-SB(R)
Specifications
Model Contact
Point
Direction of
Measurement
Range
(mm)
Graduation
(mm)
Measuring
range
accuracy
(m)
10 scale
divisions
accuracy
(m)
Hysteresis
(m)
Repeatability
(m)
Accessory
PK-SA Carbide Upward 0.14 0.001 4.0 2.0 3.0 1.0 Dovetail
Stem
Ø6mm)
PK-SAR Ruby
PK-SB Carbide Downward
PK-SBR Ruby
Please purchase PK series after checking the direction of your measurement.
    ( PK series has no change Lever and no function to change direction automatically. )

Upward Measurement Contact Point (Carbide) Dovetail Stem
Upward Measurement Contact Point (Carbide) Dovetail Stem
Downward Measurement Contact Point (Ruby) Mounting Position of
  Dovetail Stem
Downward Measurement Contact Point (Ruby) Mounting Position of Dovetail Stem

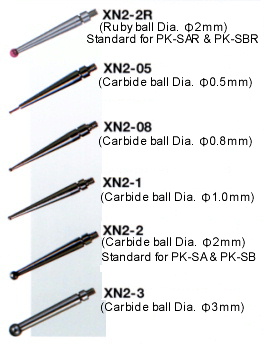

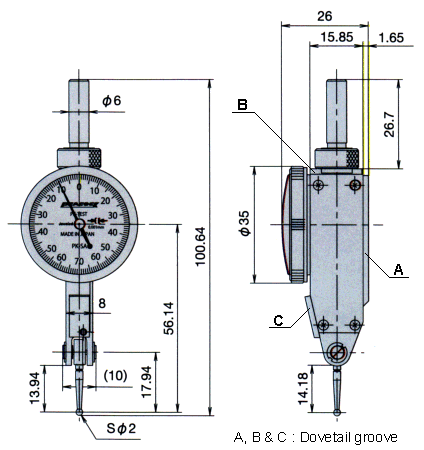

Dimensions Replaceable Contact Points
Dimensions
Replaceable Contact Points
