Peacock offers a complete line of Dial Bore Gauges with interchangeable anvils and necessary
accessories to perform close tolerance measurements of holes, taper
and roundness.
 Dial gauge mounting knob is very simple of and sure avoiding demerit of
collet-system.
The contact point is tungsten carbide ball.
Dial gauge is not furnished and supplied only on request.
Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm).
The standard ball tipped at the replacement rod is made of steel.
The sintered hard-alloy ball is also available to tip. |

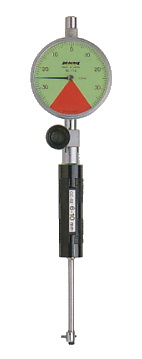

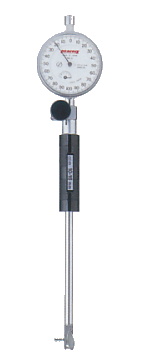

 Standard Cylinder Gauges ; CC series |
| Model |
CC-3C
(Discontinued) |
| Range |
50 - 150mm |
 With 50mm extension collar
 |
| Model |
CC-4 |
| Range |
100 - 160mm |
 |
| Model |
CC-6 |
| Range |
250 - 400mm |
 |

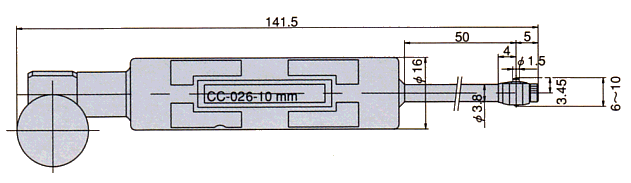

| Model |
CC-02 |
| Range |
6 - 10mm |
 |

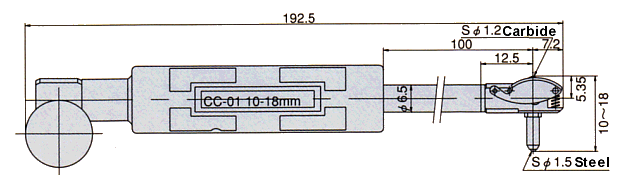

| Model |
CC-01 |
| Range |
10 - 18mm |
 |
CC-1 head details
(Discontinued)
 |
CC-2 head details
(Discontinued)
 |
| Page Top |
| Specifications |
| Model |
Range
(mm) |
Effective
measuring
range
(mm) |
Wide range
accuracy
(µm) |
Adjacent
error
(µm) |
Repeated
accuracy
(µm) |
Number of anvils
(mm) |
Thickness of
spacers
(mm) |
Extension
collar
(mm) |
| CC-02 |
6 - 10 |
0.5 |
5 |
2 |
2 |
Intervals 0.5mm×9 |
-- |
|
| CC-01 |
10 - 18 |
0.5 |
5 |
2 |
2 |
Intervals 1mm×9 |
0.5mm |
|
CC-1
(Discontinued) |
18 - 35 |
1.2 |
5 |
2 |
2 |
Intervals 2mm×9 |
0.5, 1mm each |
|
CC-2
(Discontinued) |
35 - 60 |
1.2 |
5 |
2 |
2 |
Intervals 5mm×6 |
1, 2, 3mm each |
|
CC-3
(Discontinued) |
50 - 100 |
1.2 |
5 |
2 |
2 |
Intervals 5mm×11 |
1, 2, 3mm each |
|
CC-3C
(Discontinued) |
50 - 150 |
1.2 |
5 |
2 |
2 |
Intervals 5mm×11 |
1, 2, 3mm each |
50mm×1 |
| CC-4 |
100 - 160 |
1.2 |
5 |
2 |
2 |
Intervals 10mm×7 |
1, 2, 3, 4mm each |
|
| CC-5 |
160 - 250 |
1.2 |
5 |
2 |
2 |
Intervals 10mm×10 |
1, 2, 3, 4mm each |
|
| CC-6 |
250 - 400 |
1.2 |
5 |
2 |
2 |
Intervals 10mm×16 |
1, 2, 3, 4mm each |
|
| List of special length below grip (available on request) |
|

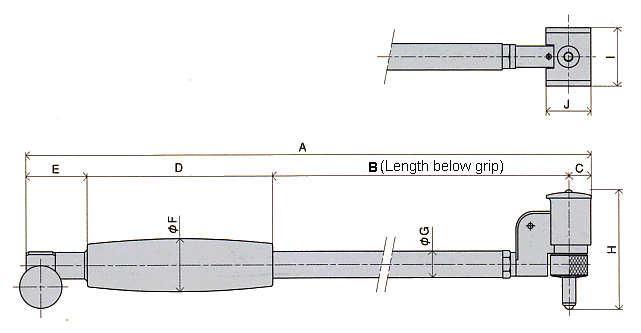

| Dimensions (mm) |
| Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
CC-1
(Discontinued) |
249 |
150 |
5.75 |
70 |
23 |
20 |
10 |
18 - 35 |
13 |
11.5 |
CC-2
(Discontinued) |
251.5 |
150 |
8.5 |
70 |
23 |
20 |
10 |
35 - 60 |
22 |
17 |
CC-3
(Discontinued) |
253 |
150 |
9 |
70 |
23 |
20 |
10 |
50 - 100 |
30 |
18 |
CC-3C
(Discontinued) |
253 |
150 |
9 |
70 |
23 |
20 |
10 |
50 - 150 |
30 |
18 |
| CC-4 |
370 |
250 |
12 |
85 |
23 |
25 |
13 |
100 - 160 |
50 |
24 |
| CC-5 |
391.5 |
251.5 |
14 |
100 |
26 |
25 |
16 |
160 - 250 |
70 |
28 |
| CC-6 |
540 |
400 |
14 |
100 |
26 |
25 |
16 |
250 - 400 |
100 |
28 |
 |
 |
 |
| Page Top |

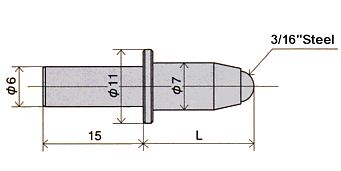

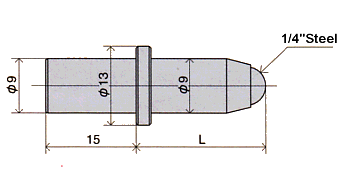

| Dimensions for Anvil for Cylinder Gauges |
| Model |
Size (mm) |
L (mm) |

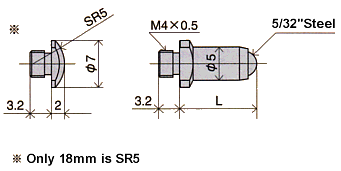

CC-1
Anvil |
※ 18 |
2 |
| 20 |
4 |
| 22 |
6 |
| 24 |
8 |
| 26 |
10 |
| 28 |
12 |
| 30 |
14 |
| 32 |
16 |
| 34 |
18 |
|
 |
| Model |
Size (mm) |
L (mm) |
CC-2
Anvil |
35 |
5 |
| 40 |
10 |
| 45 |
15 |
| 50 |
20 |
| 55 |
25 |
| 60 |
30 |
|
 |
| Model |
Size (mm) |
L (mm) |
CC-3
CC-3C
Anvil |
50 |
5 |
| 55 |
10 |
| 60 |
15 |
| 65 |
20 |
| 70 |
25 |
| 75 |
30 |
| 80 |
35 |
| 85 |
40 |
| 90 |
45 |
| 95 |
50 |
| 100 |
55 |
|
|
| Model |
Size (mm) |
L (mm) |
CC-4
Anvil |
100 |
10 |
| 110 |
20 |
| 120 |
30 |
| 130 |
40 |
| 140 |
50 |
| 150 |
60 |
| 160 |
70 |
|
 |
| Model |
Size (mm) |
L (mm) |
CC-5
Anvil |
160 |
10 |
| 170 |
20 |
| 180 |
30 |
| 190 |
40 |
| 200 |
50 |
| 210 |
60 |
| 220 |
70 |
| 230 |
80 |
| 240 |
90 |
| 250 |
100 |
|
|
| Model |
Size (mm) |
L (mm) |
CC-6
Anvil |
250 |
10 |
| 260 |
20 |
| 270 |
30 |
| 280 |
40 |
| 290 |
50 |
| 300 |
60 |
| 310 |
70 |
| 320 |
80 |
| 330 |
90 |
| 340 |
100 |
| 350 |
110 |
| 360 |
120 |
| 370 |
130 |
| 380 |
140 |
| 390 |
150 |
| 400 |
160 |
|
 |
| Dimensions for Spacers for Cylinder Gauges |
| Model |
T (mm) |
A (mm) |
B (mm) |
| CC-1 |
0.5, 1 |
4.1 |
7 |
| CC-2 |
1, 2, 3 |
5.1 |
8 |
| CC-3 |
1, 2, 3 |
5.1 |
8 |
| CC-3C |
1, 2, 3 |
5.1 |
8 |
| CC-4 |
1, 2, 3, 4 |
6.1 |
10 |
| CC-5 |
1, 2, 3, 4 |
6.1 |
10 |
| CC-6 |
1, 2, 3, 4 |
9.1 |
13 |
|
 |
|
Design and specifications are subject to change without notice for future
improvement.
