Standard Cylinder Gauges


 Standard Cylinder Gauges : H series (New)

   PDF Pamphlet Download   PDF Pamphlet (5.1MB)
  Round Guide is easy to measure.
  Integrated Head is durable.
  Transmission is adjustable system and high accuracy.
  Dial Gauge is optional, we recommend 17Z, 57B (0.01mm), 15Z, 5F (0.001mm).
  The quality of Cylinder Gauge is followed by JIS A class standard.
  Contact Point is carbide.

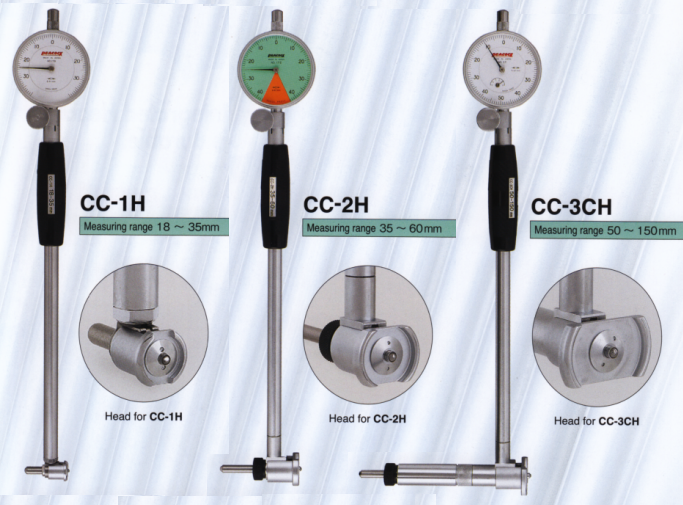

CC-1H, 2H, 3CH


   【 The structure of conventional type 】 【 The structure of New type 】
The structure Head
   Round Guide makes measurement easy to read minimum internal diameter.
   Conventional head was made by 2 parts but new one is integrated structure and improves endurance.
   Conventional Feelers, Washers and Adapter 50mm are common use with New models.
   Conventional models have been discontinued and new model numbers as shown in the table below.
  Measuring range Conventional model   New model
  18 ～  35mm CC-1 --> CC-1H
  35 ～  60mm CC-2 --> CC-2H
  50 ～ 100mm CC-3 --> CC-3H
  50 ～ 150mm CC-3C --> CC-3CH
   Conventional spare parts have been supplied until 2027 (for 7 years from 2020).


 Standard Cylinder Gauges
Model CC-4
Range 100 - 160mm

CC-4
Model CC-6
Range 250 - 400mm

CC-6
Model CC-02
Range 6 - 10mm
CC-02
Model CC-01
Range 10 - 18mm
CC-01

| Page Top |

Specifications
Model Range
(mm)		 Effective
measuring
range
(mm)		 Wide range
accuracy
(µm)		 Adjacent
error
(µm)		 Repeated
accuracy
(µm)		 Number of Feelers
(mm)		 Thickness of
Washers
(mm)		 Adapter
(mm)		 Length below
grip (mm)
CC-02 6 - 10 0.5 5 2 2 Interval 0.5mm×9 -- 50
CC-01 10 - 18 0.5 5 2 2 Interval 1mm×9 0.5mm 100
CC-1H 18 - 35 1.2 5 2 2 Interval 2mm×9 0.5, 1mm each 150
CC-2H 35 - 60 1.2 5 2 2 Interval 5mm×6 1, 2, 3mm each 150
CC-3H 50 - 100 1.2 5 2 2 Interval 5mm×11 1, 2, 3mm each 150
CC-3CH 50 - 150 1.2 5 2 2 Interval 5mm×11 1, 2, 3mm each 50mm×1 150
CC-4 100 - 160 1.2 5 2 2 Interval 10mm×7 1, 2, 3, 4mm each 250
CC-5 160 - 250 1.2 5 2 2 Interval 10mm×10 1, 2, 3, 4mm each 251.5
CC-6 250 - 400 1.2 5 2 2 Interval 10mm×16 1, 2, 3, 4mm each 400
List of special length below grip (available on request)


Dimensions H series (mm)
型 式 A B C D E F G H I J
CC-1H 248.75 150 5.75 70 23 20 10 18 ～ 35 13 11.5
CC-2H 251.5 150 8.5 70 23 20 10 35 ～ 60 23 17.2
CC-3H 251.6 150 8.6 70 23 20 10 50 ～ 100 31 17.2
CC-3CH 251.6 150 8.6 70 23 20 10 50 ～ 150 31 17.2
Dimensions H series


Dimensions (mm)
Model A B C D E F G H I J
CC-4 370 250 12 85 23 25 13 100 - 160 50 24
CC-5 391.5 251.5 14 100 26 25 16 160 - 250 70 28
CC-6 540 400 14 100 26 25 16 250 - 400 100 28
Dimensions ; CC series

Dimensions (mm) CC-02
Dimensions ; CC-02

Dimensions (mm) CC-01
Dimensions ; CC-01

| Page Top |

Dimensions for Anvil for Cylinder Gauges
Model Size (mm) L (mm)
CC-1H
Anvil		 ※ 18 2
20 4
22 6
24 8
26 10
28 12
30 14
32 16
34 18
Dimensions ; CC-1H Anvil
Model Size (mm) L (mm)
CC-2H
Anvil		 35 5
40 10
45 15
50 20
55 25
60 30
Dimensions ; CC-2H Anvil
Model Size (mm) L (mm)
CC-3H
CC-3CH
Anvil		 50 5
55 10
60 15
65 20
70 25
75 30
80 35
85 40
90 45
95 50
100 55
Dimensions ; CC-3H/CC-3CH Anvil
Model Size (mm) L (mm)
CC-4
Anvil		 100 10
110 20
120 30
130 40
140 50
150 60
160 70
Dimensions ; CC-4 Anvil
Model Size (mm) L (mm)
CC-5
Anvil		 160 10
170 20
180 30
190 40
200 50
210 60
220 70
230 80
240 90
250 100
Dimensions ; CC-5 Anvil
Model Size (mm) L (mm)
CC-6
Anvil		 250 10
260 20
270 30
280 40
290 50
300 60
310 70
320 80
330 90
340 100
350 110
360 120
370 130
380 140
390 150
400 160
Dimensions ; CC-6 Anvil

Dimensions for Spacers for Cylinder Gauges
Model T (mm) A (mm) B (mm)
CC-1H 0.5, 1 4.1 7
CC-2H 1, 2, 3 5.1 8
CC-3H 1, 2, 3 5.1 8
CC-3CH 1, 2, 3 5.1 8
CC-4 1, 2, 3, 4 6.1 10
CC-5 1, 2, 3, 4 6.1 10
CC-6 1, 2, 3, 4 9.1 13
Dimensions ; CC series Spacers
