 This is a compact cylinder gauge with a length below grip of 50mm. |
| Round Guide is easy to measure. |
| Integrated Head is durable. |
| Transmission is adjustable system and high accuracy. |
| Dial Gauge is optional, we recommend 17Z, 57B (0.01mm), 15Z, 5F (0.001mm). |
| The quality of Cylinder Gauge is followed by JIS A class standard. |
| Contact Point is carbide. |
|
 Short Size Cylinder Gauges : HS series (New) |
|

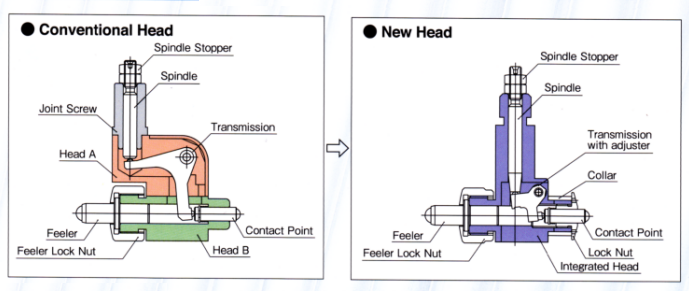

【 The structure of conventional type 】 |
【 The structure of New type 】 |
| |
Round Guide makes measurement easy to read minimum internal diameter. |
| |
Conventional head was made by 2 parts but new one is integrated structure
and improves endurance. |
| |
Conventional Feelers, Washers and Adapter 50mm are common use with New
models. |
| |
Conventional models have been discontinued and new model numbers as shown in the table below.
| |
Measuring range |
Conventional model |
|
New model |
| |
18 ～ 35mm |
CC-1S |
--> |
CC-1HS |
| |
35 ～ 60mm |
CC-2S |
--> |
CC-2HS |
| |
50 ～ 100mm |
CC-3S |
--> |
CC-3HS |
| |
50 ～ 150mm |
CC-3CS |
--> |
CC-3CHS |
|
| |
Conventional spare parts have been supplied until 2027 (for 7 years from
2020). |
|
| Specifications |
| Model |
Range
(mm) |
Effective
measuring
range
(mm) |
Wide range
accuracy
(µm) |
Adjacent
error
(µm) |
Repeated
accuracy
(µm) |
Number of Feelers
(mm) |
Thickness of
Washers
(mm) |
Adapter
(mm) |
Length below
grip (mm) |
| CC-1HS |
18 - 35 |
1.2 |
5 |
2 |
2 |
Interval 2mm×9 |
0.5, 1mm each |
|
50 |
| CC-2HS |
35 - 60 |
1.2 |
5 |
2 |
2 |
Interval 5mm×6 |
1, 2, 3mm each |
|
50 |
| CC-3HS |
50 - 100 |
1.2 |
5 |
2 |
2 |
Interval 5mm×11 |
1, 2, 3mm each |
|
50 |
| CC-3CHS |
50 - 150 |
1.2 |
5 |
2 |
2 |
Interval 5mm×11 |
1, 2, 3mm each |
50mm×1 |
50 |
|
|

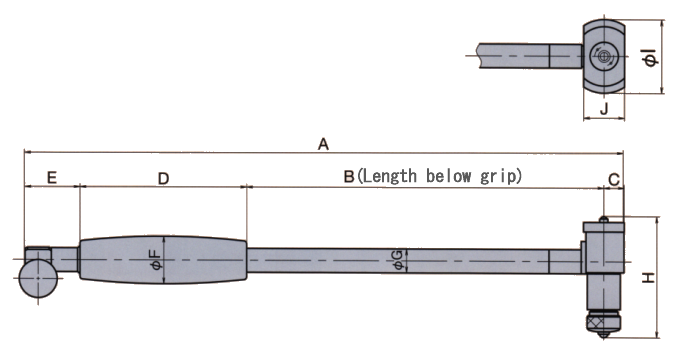

| Dimensions HS series (mm) |
| 型 式 |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
| CC-1HS |
148.75 |
50 |
5.75 |
70 |
23 |
20 |
10 |
18 ～ 35 |
13 |
11.5 |
| CC-2HS |
151.5 |
50 |
8.5 |
70 |
23 |
20 |
10 |
35 ～ 60 |
23 |
17.2 |
| CC-3HS |
151.6 |
50 |
8.6 |
70 |
23 |
20 |
10 |
50 ～ 100 |
31 |
17.2 |
| CC-3CHS |
151.6 |
50 |
8.6 |
70 |
23 |
20 |
10 |
50 ～ 150 |
31 |
17.2 |
 |
| Page Top |
| Dimensions for Anvil for CC-1HS - CC-3CHS |
| Model |
Size (mm) |
L (mm) |
CC-1HS
Anvil |
※ 18 |
2 |
| 20 |
4 |
| 22 |
6 |
| 24 |
8 |
| 26 |
10 |
| 28 |
12 |
| 30 |
14 |
| 32 |
16 |
| 34 |
18 |
|
 |
| Model |
Size (mm) |
L (mm) |
CC-2HS
Anvil |
35 |
5 |
| 40 |
10 |
| 45 |
15 |
| 50 |
20 |
| 55 |
25 |
| 60 |
30 |
|
 |
| Model |
Size (mm) |
L (mm) |
CC-3HS
CC-3CHS
Anvil |
50 |
5 |
| 55 |
10 |
| 60 |
15 |
| 65 |
20 |
| 70 |
25 |
| 75 |
30 |
| 80 |
35 |
| 85 |
40 |
| 90 |
45 |
| 95 |
50 |
| 100 |
55 |
|
|
| Dimensions for Spacers for CC-1HS - CC-3CHS |
| Model |
T (mm) |
A (mm) |
B (mm) |
| CC-1HS |
0.5, 1 |
4.1 |
7 |
| CC-2HS |
1, 2, 3 |
5.1 |
8 |
| CC-3HS |
1, 2, 3 |
5.1 |
8 |
| CC-3CHS |
1, 2, 3 |
5.1 |
8 |
|
 |
|
Design and specifications are subject to change without notice for future
improvement.
