Full Choice Cylinder Gauges ; CC, CG series


Full Choice Cylinder Gauges are available for a wide variety of applications. For added savings,
  Head for Cylinder Gauge and replaceable rods are sold singly, and not in a set.
All the contact points are tungsten carbide ball.
The standard ball tipped at the replacement rod is made of steel.
  The carbide ball is also available to tip.
Optional Dial Gauges 15Z and 17Z with the pointer rotate only one revolution.
Specifications
Model (Standard Type) Model (Blind Hole Type) Wide range
accuracy (µm)		 Adjacent
error (µm)		 Repeated
accuracy (µm)
CC-0110 - CC-0118 CG-0110 - CG-0118 5 2 2
CC-118H - CC-134H CG-118 - CG-134 5 2 2
CC-235H - CC-260H CG-235 - CG-260 5 2 2
CC-350H - CC-3100CH CG-350 - CG-3100C 5 2 2

Full Choice Cylinder Gauges ; CC, CG series

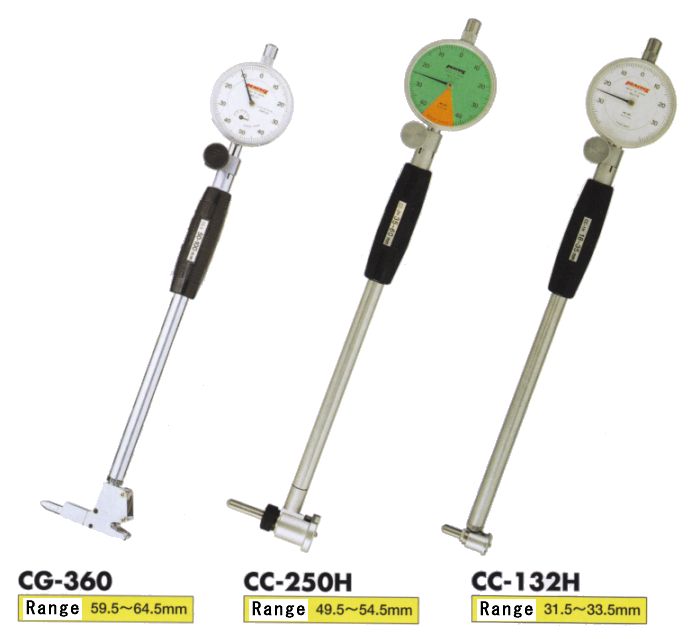

 CG-360/CC-250H/CC-132H

Standard Type (CC-01) Specifications
(Full Choice Cylinder Gauges ; CC0110 - CC-0118)


CC-01 head details		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-0110 9.75 - 10.75 10 0.5 57B 17Z 5F 15Z
CC-0111 10.75 - 11.75 11 0.5 57B 17Z 5F 15Z
CC-0112 11.75 - 12.75 12 0.5 57B 17Z 5F 15Z
CC-0113 12.75 - 13.75 13 0.5 57B 17Z 5F 15Z
CC-0114 13.75 - 14.75 14 0.5 57B 17Z 5F 15Z
CC-0115 14.75 - 15.75 15 0.5 57B 17Z 5F 15Z
CC-0116 15.75 - 16.75 16 0.5 57B 17Z 5F 15Z
CC-0117 16.75 - 17.75 17 0.5 57B 17Z 5F 15Z
CC-0118 17.75 - 18.75 18 0.5 57B 17Z 5F 15Z
CC-0100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-0100 include a spanner.

Blind Hole Type (CG-01) Specifications
(Full Choice Cylinder Gauges ; CG-0110 - CG-0118)


CG-01 head details		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-0110 9.75 - 10.75 10 0.5 57B 17Z 5F 15Z
CG-0111 10.75 - 11.75 11 0.5 57B 17Z 5F 15Z
CG-0112 11.75 - 12.75 12 0.5 57B 17Z 5F 15Z
CG-0113 12.75 - 13.75 13 0.5 57B 17Z 5F 15Z
CG-0114 13.75 - 14.75 14 0.5 57B 17Z 5F 15Z
CG-0115 14.75 - 15.75 15 0.5 57B 17Z 5F 15Z
CG-0116 15.75 - 16.75 16 0.5 57B 17Z 5F 15Z
CG-0117 16.75 - 17.75 17 0.5 57B 17Z 5F 15Z
CG-0118 17.75 - 18.75 18 0.5 57B 17Z 5F 15Z
CG-0100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-0100 include a spanner.

| Page Top |

Standard Type (CC-1H) Specifications
(Full Choice Cylinder Gauges ; CC-118H - CC-134H)


CC-1H head details		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-118H 17.5 - 19.5 18 0.5, 1 57B 17Z 5F 15Z
CC-120H 19.5 - 21.5 20 0.5, 1 57B 17Z 5F 15Z
CC-122H 21.5 - 23.5 22 0.5, 1 57B 17Z 5F 15Z
CC-124H 23.5 - 25.5 24 0.5, 1 57B 17Z 5F 15Z
CC-126H 25.5 - 27.5 26 0.5, 1 57B 17Z 5F 15Z
CC-128H 27.5 - 29.5 28 0.5, 1 57B 17Z 5F 15Z
CC-130H 29.5 - 31.5 30 0.5, 1 57B 17Z 5F 15Z
CC-132H 31.5 - 33.5 32 0.5, 1 57B 17Z 5F 15Z
CC-134H 33.5 - 35.5 34 0.5, 1 57B 17Z 5F 15Z
CC-100H Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-100H include a spanner.

Blind Hole Type (CG-1) Specifications
(Full Choice Cylinder Gauges ; CG-118 - CG-134)

CG-1 head details		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-118 17.5 - 19.5 18 0.5, 1 57B 17Z 5F 15Z
CG-120 19.5 - 21.5 20 0.5, 1 57B 17Z 5F 15Z
CG-122 21.5 - 23.5 22 0.5, 1 57B 17Z 5F 15Z
CG-124 23.5 - 25.5 24 0.5, 1 57B 17Z 5F 15Z
CG-126 25.5 - 27.5 26 0.5, 1 57B 17Z 5F 15Z
CG-128 27.5 - 29.5 28 0.5, 1 57B 17Z 5F 15Z
CG-130 29.5 - 31.5 30 0.5, 1 57B 17Z 5F 15Z
CG-132 31.5 - 33.5 32 0.5, 1 57B 17Z 5F 15Z
CG-134 33.5 - 35.5 34 0.5, 1 57B 17Z 5F 15Z
CG-100 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-100 include a spanner.

| Page Top |

Standard Type (CC-2H) Specifications
(Full Choice Cylinder Gauges ; CC-235H - CC-260H)


CC-2H head details
 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CC-235H 34.5 - 39.5 35 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-240H 39.5 - 44.5 40 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-245H 44.5 - 49.5 45 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-250H 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-255H 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-260H 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-200H Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-200H include a spanner.

Blind Hole Type (CG-2) Specifications
(Full Choice Cylinder Gauges ; CG-235 - CG-260)

CG-2 head details		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) 0.01mm 0.001mm
CG-235 34.5 - 39.5 35 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-240 39.5 - 44.5 40 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-245 44.5 - 49.5 45 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-250 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-255 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-260 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-200 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-200 include a spanner.

| Page Top |

Standard Type (CC-3H) Specifications
(Full Choice Cylinder Gauges ; CC-350H - CC-3100CH)


CC-3H head details


CC-3C Adapter 50mm
With Adapter 50mm
CC-355CH - CC-3100CH		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) Adapter
(mm)		 0.01mm 0.001mm
CC-350H 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-355H 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-360H 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-365H 64.5 - 69.5 65 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-370H 69.5 - 74.5 70 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-375H 74.5 - 79.5 75 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-380H 79.5 - 84.5 80 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-385H 84.5 - 89.5 85 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-390H 89.5 - 94.5 90 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-395H 94.5 - 99.5 95 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-3100H 99.5 - 104.5 100 0.5, 1, 2, 3 57B 17Z 5F 15Z
CC-355CH 104.5 - 109.5 55 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-360CH 109.5 - 114.5 60 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-365CH 114.5 - 119.5 65 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-370CH 119.5 - 124.5 70 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-375CH 124.5 - 129.5 75 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-380CH 129.5 - 134.5 80 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-385CH 134.5 - 139.5 85 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-390CH 139.5 - 144.5 90 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-395CH 144.5 - 149.5 95 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-3100CH 149.5 - 154.5 100 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CC-300H Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CC-300H include a spanner.

Blind Hole Type (CG-3) Specifications
(Full Choice Cylinder Gauges ; CG-350 - CG-3100C)

CG-3 head details


CG-3C Adapter 50mm
With Adapter 50mm
CG-355C - CG-3100C		 Model Range (mm) Standard attachments Recommended dial gauges
(option)
Rod (mm) Washer (mm) Adapter
(mm)		 0.01mm 0.001mm
CG-350 49.5 - 54.5 50 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-355 54.5 - 59.5 55 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-360 59.5 - 64.5 60 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-365 64.5 - 69.5 65 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-370 69.5 - 74.5 70 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-375 74.5 - 79.5 75 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-380 79.5 - 84.5 80 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-385 84.5 - 89.5 85 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-390 89.5 - 94.5 90 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-395 94.5 - 99.5 95 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-3100 99.5 - 104.5 100 0.5, 1, 2, 3 57B 17Z 5F 15Z
CG-355C 104.5 - 109.5 55 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-360C 109.5 - 114.5 60 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-365C 114.5 - 119.5 65 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-370C 119.5 - 124.5 70 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-375C 124.5 - 129.5 75 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-380C 129.5 - 134.5 80 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-385C 134.5 - 139.5 85 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-390C 139.5 - 144.5 90 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-395C 144.5 - 149.5 95 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-3100C 149.5 - 154.5 100 0.5, 1, 2, 3 50 57B 17Z 5F 15Z
CG-300 Body for Cylinder gauge only
(not including replacement rod, washer, spanner)
All models except CG-300 include a spanner.
