Dial Gauge Automatic Tester Model DGT-20G


Dial Gauge Automatic Tester Model DGT-20G

When using a dial gauge, it is usually mounted on a jig for inspection. To perform its periodic
inspection, it needs a lot of processes more than the other measuring instruments and further
time-consuming troublesome works to graph the inspected results are required.
Model "DGT-20G" contributes to decrease such troublesome works extremely.
By only setting a pointer of dial gauge and just turning on a memory switch, gauge testing is
automatically made.
Everyone can use it with great ease.

 (1) Easy operation
By only setting a pointer on the scale of dial gauge and just turning on a memory switch, measured data is processed
by a micro-computer and its results are automatically printed out.
 (2) Reducing eye strain
Only fix your eyes to a pointer of dial gauge!
Since you do not read the scale of a gauge tester, measurement for a long time will not tire your eyes.
 (3) Reducing your inspection time extremely
It can reduce your inspection time from one third to one fifth shorter compared with the conventional method of
inspection since this tester has no necessity of reading, recording, and judging the error values.
 (4) High precision
Usual calibration is not necessary because of the optical glass scale capable of maintaining the stable accuracy with
less aged deterioration. Stable inspection is possible because a spindle is not a revolutionary type but a straight one.
 (5) Register function
Once the measuring range, pitch, and values for judgement are registered, speedy inspection can be done just by
calling out these items. There include the items already registered by the maker(ROM)and the ones to be originally
registered by users(RAM).
 (6) Manual mode
Measuring items can be set by manual setting. It will be effective to inspect such a gauge that you do not usually use.

DGT-20G ( example )

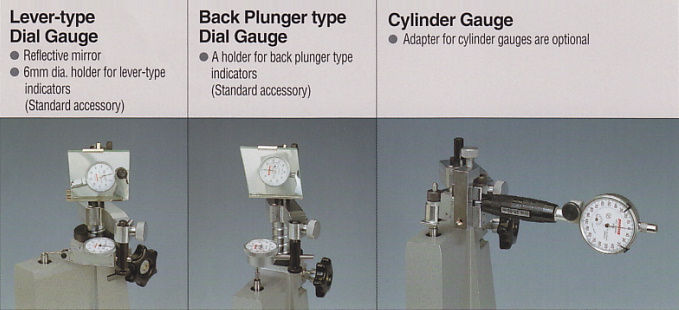

Applicable gauges
Dial gauge ( based on JIS B 7503 )
Special type gauge ( based on JIS B 7509 )
Lever-type gauge ( based on JIS B 7533 )
Cylinder gauge ( based on JIS B 7515 )
All of these have to be typical Cylinder gauges with standard probe Depth.

DGT-20G ( Printing example )

 Dimensions
DGT-20G ( Dimensions )


Specifications
Model DGT-20G
 Measuring Range 0 - 20mm
 Resolution 0.2 µm
 Accuracy ±1 µm
 Standard Scale Incremental linear scale
 Feed Portion Micrometer head
 Display Portion Standard value   Error value
 Applicable gauges Dial gauge ( based on JIS B 7503 )   Lever-type gauges ( based on JIS 7515 )
Cylinder gauge ( based on JIS B 7515 )   Special type gauge ( based on JIS B 7533 )
 Minimum pitch 1 µm ( 0.5µm is impossible )
 Maximum input points 200 points
 Registered code 24 points
 User register code About 130 points ( input by users )
 Selection of printing Print all data   Print only results   Print line graphics
 Judgement By setting the values for judgement, NG value is printed in red letters.
 Display function Standard value is displayed on the left.
Error value is displayed on the right.
 ( Narrow range, wide range, or return error is automatically switched. )
 Key input function Measuring date, measuring person, control number   code number ( within ten characters )
 Preset function Measuring a long stroke gauge of 20 to 40 mm
 Recording paper Plain paper roll 57×ø50mm available in the market
 Power supply AC100V  }10%  50/60Hz
 Standard accessories Attachment for lever-type dial gauge --> 1 Pc.
Attachment for back plunger dial gauge --> 1 Pc.
Mirror ( for lever-type dial gauge ) --> 1 Pc.
Connecting code 1 pc., recording paper 1 roll, ink ribbon
 Options Attachment for cylinder gauge ( DGT-CC )
Attachment for back plunger dial gauge
Panel in English, Display in inch
Foot-switch ( for memory )
Storing data in a PC, development of software
 Data output
Based on RS-232C output
Transmit entire data upon test completion
Connector D-Sub25P
Transmission method Asynchronous style
baud rate 4800 Bps
start bit 1 bit
stop bit 1 bit
code ASC‡U 8 bit
parity none
