Dial Thickness Gauges 0.01mm type


 These thickness gauges are especially handy for measuring thickness of small parts, metal,
 rubber, vinyl, paper, foil and other sheet material.
The objects to be measured is clamped by simple lever operation.
The measured values are read directly on the dial gauge.
Since the anvil and the contact point are adjusted for parallelism, accurate measured values
are obtained.
Dial Thickness Gauges 0.01mm type
Model G
Graduation 0.01mm
Range 0 - 10mm
Ø10mm flat contact point and
  anvil (ceramic)



G
Model G-1A
Graduation 0.01mm
Range 0 - 10mm
Ø5mm flat contact point and
  anvil (metal)




G-1A
Model G-1M
Graduation 0.01mm
Range 0- 10mm
Ø6mm flat contact point and
  anvil (metal)
The frame on the anvil side
  is cut, which facilitates
  measurement in a narrow place.

G-1M

Model G-2
Graduation 0.01mm
Range 0 - 20mm
Ø10mm flat contact point and
  anvil (ceramic)

G-2
Model G-3 ( Discontinued )
Graduation 0.01mm
Range 30mm (Anvil 20mm)
Ø10mm flat contact point and
  anvil (ceramic)
Anvil side is adjustable
G-3
Model G-4 ( Discontinued )
Graduation 0.01mm
Range 65mm (Anvil 55mm)
Spherical contact point
Anvil side is adjustable

G-4

Model H
Graduation 0.01mm
Range 0 - 10mm
Ø10mm flat contact point and anvil (ceramic)
H
Model H-1A
Graduation 0.01mm
Range 0 - 10mm
Ø5mm flat contact point and anvil (metal)
H-1A

Model H-2
Graduation 0.01mm
Range 0 - 10mm
Spherical contact point and anvil
H-2
Model H-3 ( Discontinued )
Graduation 0.01mm
Range 0 - 10mm
Spherical contact point and roller type anvil
H-3


A PAPER GAUGE "PG-10" is a Thickness gauge to the
Measurement of Paper and similar objects.
Model PG-10 ( Paper Gauge )
Graduation 0.01mm
Range 0 - 10mm
Thickness Gauge to the Measurement of Paper
   and Similar objects.
The gauge is calibrated in 0.01mm or 10 micron.

PG-10 ( Paper Gauge )


Portable size! Excellent usability!
The SK material is used for the
parts holding paper in between

PG-10 ( Example )

The gauge graduation is represented in
millimeter and micron.
Contact Point and Anvil parts available in
special geometry at request.


Specifications
Model Graduation
(mm)
Range
(mm)
Throat depth
(mm)
Accuracy
(µm)
Contact Point Measuring force
less than (N)
Dia (mm) Parallelism (µm)
G 0.01 0 - 10 20 }20 10 5 1.8
G-MT 0.01 0 - 10 20 }20 10 (metal) 5 1.8
G-1A 0.01 0 - 10 20 }20 5 5 1.8
G-1M 0.01 0 - 10 20 }20 6 5 1.8
PG-10 0.01 0 - 10 20 }20 10 (metal) 5 1.8
G-2 0.01 0 - 20 33 }22 10 5 2.0
G-3
( Discontinued )
0.01 30 (Anvil 20mm) 20 }20 10 5 1.8
G-4
( Discontinued )
0.01 65 (Anvil 55mm) 30 }20 ball tip -- 1.8
H 0.01 0 - 10 120 }20 10 5 1.8
H-MT 0.01 0 - 10 120 }20 10 (metal) 5 1.8
H-1A 0.01 0 - 10 120 }20 5 5 1.8
H-2 0.01 0 - 10 170 }20 Spherical -- 1.8
H-3
( Discontinued )
0.01 0 - 10 170 }20 Spherical -- 1.8
Examples of modification for contact point and anvil

Page Top |


Dimensions; G
Dimensions ; G

Dimensions; G-MT, PG-10
Dimensions ; G-MT, PG-10



Dimensions; G-1M
Dimensions ; G-1M



Dimensions; G-1A
Dimensions ; G-1A

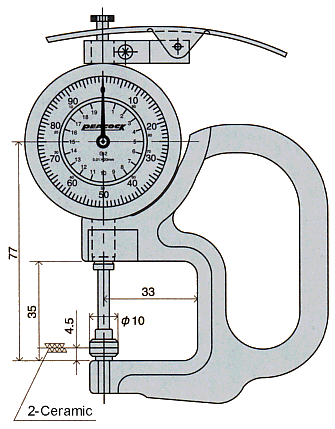

Dimensions; G-2
Dimensions ; G-2

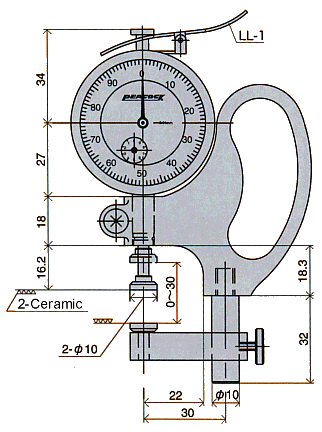

Dimensions; G-3 ( Discontinued )
Dimensions ; G-3

Dimensions; G-4 ( Discontinued )
Dimensions ; G-4


Dimensions; H
Dimensions ; H



Dimensions; H-1A
Dimensions ; H-1A



Dimensions; H-MT
Dimensions ; H-MT

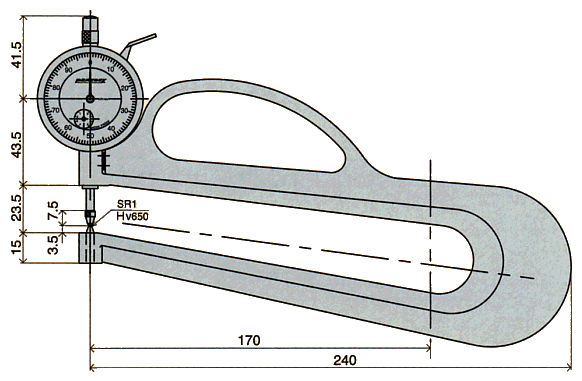

Dimensions; H-2
Dimensions ; H-2

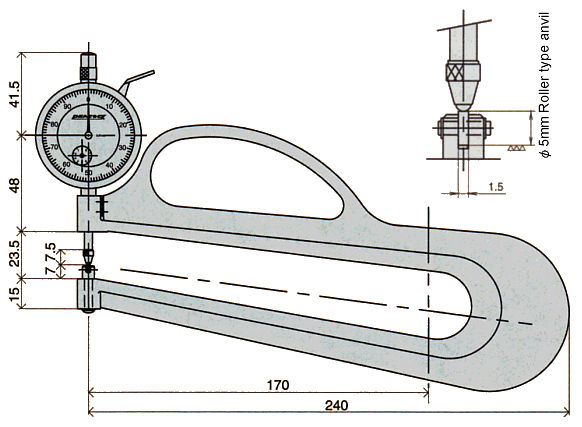

Dimensions; H-3 ( Discontinued )
Dimensions ; H-3
