Personal Measure ;Discontinued

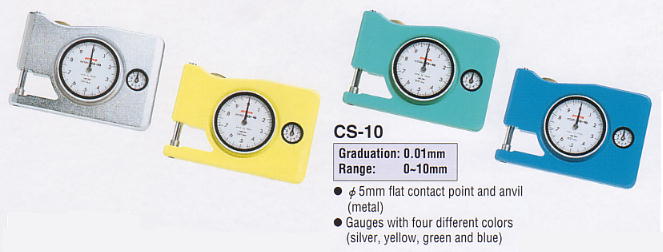

* Very compact, thin, card sized thickness gauge. * Recommended for measuring thickness of paper, film, rubber, plastic, wire, fiber, fishing    lines and jewelry. * Highly portable. Easily fits in your pocket or purse.

Specifications
Model	Graduation (mm)	Range (mm)	Throat depth (mm)	Accuracy (µm)	Contact Point		Measuring force less than (N)
					Dia (mm)	Parallelism (µm)
CS-10	0.01	0 - 10	20	±20	5	5	1.0
Yellow				Blue
Green				Silver

---

[Back] Product Information Menu

Design and specifications are subject to change without notice for future improvement.
