Dial Thickness Gauges (Large type)


These large thickness gauges having extended throat depth to measure at the center
of wide sheets.
Dial Thickness Gauges (Large type)
Model J-A
Graduation 0.01mm
Range 0 - 20mm
The gauge sits by stand
Ø10mm flat contact point
  and Ø20mm anvil (metal)
 J-A
Model J-B
Graduation 0.05mm
Range 0 - 35mm
Ø20mm flat contact point
  and anvil (metal)		 J-B
optional Ø30, 40 and 50mm contact points and anvils are available

Specifications
Model Graduation
(mm)		 Range
(mm)		 Throat depth
(mm)		 Accuracy
(µm)		 Contact Point Measuring force
less than (N)
Dia (mm) Parallelism (µm)
J-A 0.01 0 - 20 150 ±22 10 5 2.0
J-B 0.05 0 - 35 140 ±100 20 25 3.0

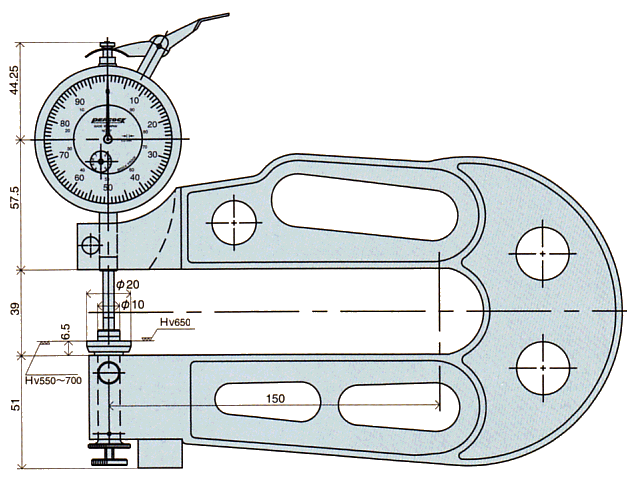

Dimensions; J-A
Dimensions ; J-A

Dimensions; J-B
Dimensions ; J-B
