HOME > Product Information > Thickness Gauges |
|
Dial Pipe Gauges |
![](01bul15.gif) |
Special gauges for measuring wall thickness of pipes and width of curved wood. |
|
Dial Pipe Gauges |
Model |
P-1 |
Graduation |
0.01mm |
Range |
0 - 10mm |
![P-1](pt_450.jpg) |
Dimensions; P-1
![Dimensions ; P-1](pt_456.gif)
|
Model |
P-2 |
Graduation |
0.01mm |
Range |
0 - 15mm |
![P-2](pt_451.jpg) |

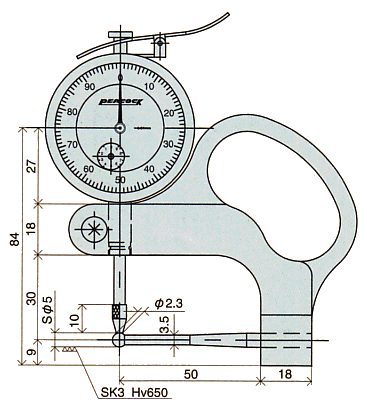

Dimensions; P-2
![Dimensions ; P-2](pt_458.gif)
|
Model |
P-3 |
Graduation |
0.01mm |
Range |
0 - 15mm |
![P-3](pt_452.jpg)
|

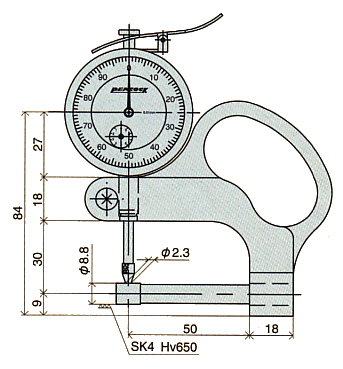

Dimensions; P-3
![Dimensions ; P-3](pt_460.gif) |
Specifications |
Model |
Graduation
(mm) |
Range
(mm) |
Accuracy
(µm) |
Pipe size measurable (mm) |
Measuring force
less than (N) |
Minimum bore D |
Maximum wall
thickness T |
Depth L |
P-1 |
0.01 |
0 - 10 |
±20 |
2.5 |
10 |
10 |
1.8 |
P-2 |
0.01 |
0 - 15 |
±22 |
5.1 |
15 |
50 |
1.8 |
P-3 |
0.01 |
0 - 15 |
±22 |
9.0 |
15 |
50 |
1.8 |
