Dial Upright Gauges; R1 series

	Best suited for measuring precision parts and testing materials like rubber, leather, fabric and plastic etc. Rubber, leather, urethane and film can be easily measured by this system.
	The table of R1 series are adjustable up and down by the nut installed side way.
	The dial gauge is affixed to the body.
	Constant Pressure Thickness Gauge

Dial Upright Gauges; R1 series

Model	R1-A
Graduation	0.001mm
Range	2mm
Effective measuring range	10mm

R1-A

Model	R1-B
Graduation	0.01mm
Range	10mm
Effective measuring range	25mm

R1-B

Model	R1-C
Graduation	0.01mm
Range	20mm
Effective measuring range	20mm

R1-C

Specifications
Model	Dial Indicator (standard attachments)			Indication error ( µm )	Table diameter ( mm )	Contact point dia. ( mm )	Measuring force less than (N)	Measuring depth ( mm )	Effective measuring range (mm)	Total height ( mm )
Model	Gauge installed	Range ( mm )	Graduation ( mm )	Indication error ( µm )	Table diameter ( mm )	Contact point dia. ( mm )	Measuring force less than (N)	Measuring depth ( mm )	Effective measuring range (mm)	Total height ( mm )
R1-A	25F-RE	2	0.001	±7	40	5	1.5	55	10	191
R1-B	107F-RE	10	0.01	±15	40	5	1.4	55	25	190
R1-C	207F-PL	20	0.01	±22	40	5	2.0	55	20	210

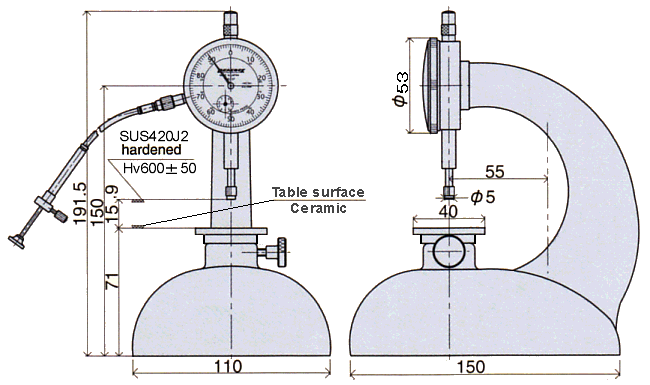

Dimensions; R1-A

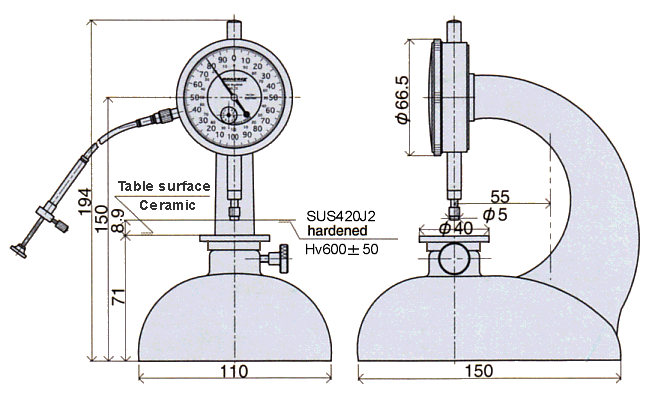

Dimensions; R1-B

Dimensions; R1-C
