Dial Depth Gauge (T series)


It measure a depth from top bottom of bottomed holes, a depth of narrow grooves,
a value of step height of stepped surfaces and a depth of types engraved in matrices.
The dial gauge furnished offers a correct measured value since it can measure an
object under measurement with a given measuring force.
Dial Depth Gauge (T series)
Model T-1
Graduation 0.01mm
Range 0 - 160mm
8 contact points are included
 (20mm intervals).
For T-1 type, replace the contact
 point in accordance with the
 measuring range.

Contact Point
Contact Point ; T-1

T-1
Model T-1W
Graduation 0.01mm
Range 0 - 220mm
4 extension rods in 20, 40, 60
 and 80mm sizes
For T-1W type, recombine the
 extension rods, in accordance with
 the measuring range.
Two center-pointer type.


Contact Point
Contact Point ; T-1W

T-1W
Model T-2
Graduation 0.01mm
Range 0 - 10mm

Contact Point
Contact Point ; T-2

T-2
Model T-2W
Graduation 0.01mm
Range 0 - 20mm

Contact Point
Contact Point ; T-2W
T-2W
Model T-3
Graduation 0.01mm
Range 0 - 10mm
Needle Contact Point (XT-3)

Contact Point
Contact Point ; XT-3

T-3
Model T-4
Graduation 0.001mm
Range 0 - 1mm
Needle Contact Point (XT-4)

Contact Point
Contact Point ; XT-4

T-4
Model T-2B
Graduation 0.01mm
Range 0 - 5mm
For T-2B type, the dial face is at
 a right angle with the contact
 point, which facilitate easy reading
 from the upside.


Contact Point
Contact Point ; T-2B

T-2B
Model T-2C
Graduation 0.01mm
Range 0 - 10mm
Needle Contact Point (XT-2C)

Contact Point
Contact Point ; XT-2C

T-2C
Model T-6A
Graduation 0.01mm
Range 0 - 10mm
Round base type
Base Outer dia. Ø25mm
Needle Contact Point dia. Ø2.0mm
T-6A

Model T-6B
Graduation 0.01mm
Range 0 - 10mm
Round base type
Base Outer dia. Ø25mm
Needle Contact Point dia. Ø1.0mm
T-6B

Specifications
Model Range
(mm)
Accuracy
(µm)
Dial Gauge Base
Gauge
installed
Graduation
(mm)
Range
(mm)
Measuring force
less than (N)
Length (mm) Width (mm)
T-1 0 - 160 }20 207F-T 0.01 20 2.0 120 14
T-1W 0 - 220 }20 207WF-T 0.01 20 2.0 100 11
T-2 0 - 10 }15 107F-T 0.01 10 1.4 60 14
T-2W 0 - 20 }20 207WF-T 0.01 20 2.0 75 11
T-2B 0 - 5 }20 196B-T 0.01 5 1.4 75 11
T-2C 0 - 10 }15 107F-T 0.01 10 1.4 75 11
T-3 0 - 10 }15 107F-T 0.01 10 1.4 60 Shown in figure
T-4 0 - 1 }5 5F 0.001 1 1.5 40 10
T-6A 0 - 10 }15 107F-T 0.01 10 1.4 Ø25
T-6B 0 - 10 }15 107F-T 0.01 10 1.4 Ø25
Base is hardened and polished.


 Dimensions; T-1
Dimensions ; T-1

 Dimensions; T-1W

Dimensions ; T-1W


 Dimensions; T-2

Dimensions ; T-2

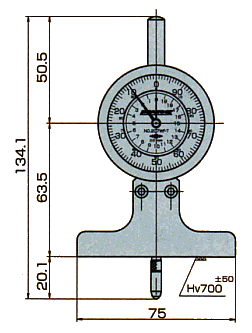

 Dimensions; T-2W

Dimensions ; T-2W

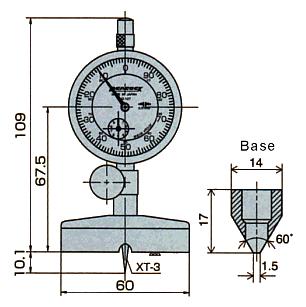

 Dimensions; T-3

Dimensions ; T-3

 Dimensions; T-4

Dimensions ; T-4

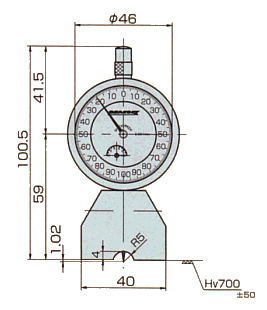

 Dimensions; T-2B

Dimensions ; T-2B

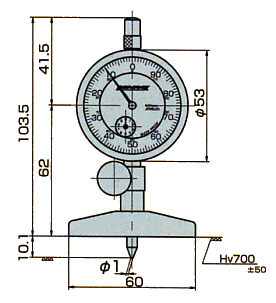

 Dimensions; T-2C

Dimensions ; T-2C

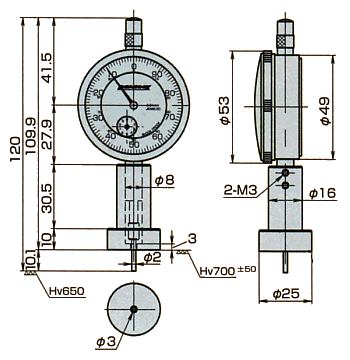

Dimensions; T-6A

Dimensions ; T-6A

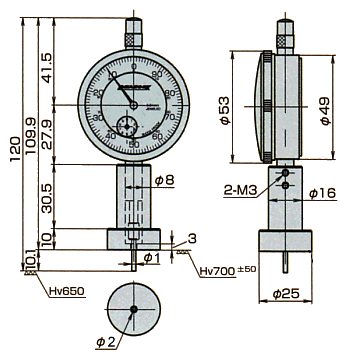

Dimensions; T-6B

Dimensions ; T-6B
