Lever type Contact Points (XY series)

This instrument have a 50mm length of lever and used to measure depth of holes.
The flat contact point (XS-2) is installed to the dial gauge to hold the back when used.
Lever type Contact Points ( dial gauges supplied on request )
Model XY-1
Lever angle is fixed

Model XY-2
Lever angle is adjustable

 Dimensions; XY-1

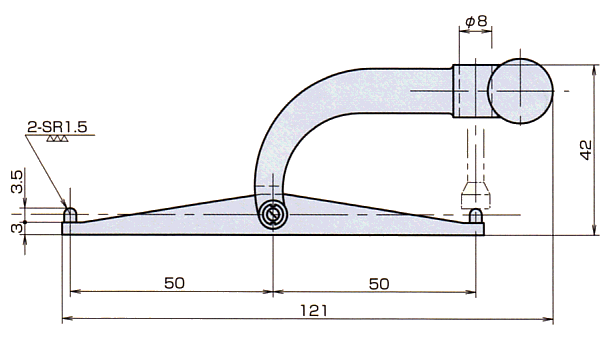

Dimensions ; XY-1

 Dimensions; XY-2

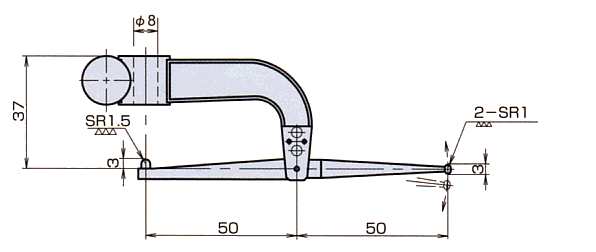

Dimensions ; XY-2
