Dial Hole Gauge


 The Dial Hole Gauge is used for measurement of a bore diameter or groove width.
Adjustable upper frame may be changed as desired, thus securing a wide measuring range.
The contact point has an outer dia of 2 mm and a height of 2 mm.
  (R 1mm ball, M1.7×0.35mm.)
Dial Hole Gauge ( Discontinued )
Model GH-1
( Discontinued )
Graduation 0.01mm
Range 10mm
GH-1

Specifications
Model Dial Gauge Measurable
bore ID
(mm)		 Measurable
depth less than
(mm)
Graduation
(mm)		 Range
(mm)		 Indication error
(µm)		 Reading Measuring force
less than (N)
GH-1
( Discontinued )		 0.01 10 ±20 ±100 - 50 - 0 1.4 10 - 50 25

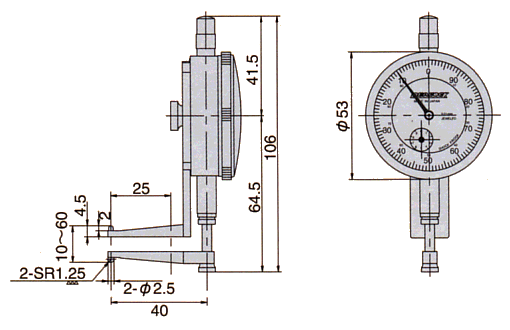

Dimensions
Dimensions ; GH-1
