( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Shrink package film. |
Z 1709 |
FFG-1, FFA-1, FFD-1 |
| Polyethylene package film. |
Z 1702 |
FFG-1, FFA-1, FFD-1 |
| Ethylene film. |
K 6783 |
FFG-1, FFA-1, FFD-1 |
|
|
|

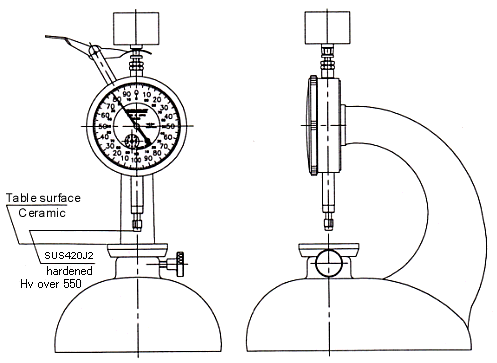

 Specifications Compact type FFG-1 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-1 |
0.001 |
2 |
±10 |
24 |
5 |
30 |
1.25±0.15
( 125±15 ) |
5 |
|
| Page Back |

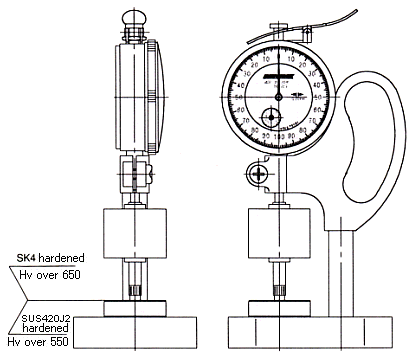

| Specifications Stand type FFA-1 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-1 |
0.001 |
2 |
±8 |
55 |
5 |
40 |
1.25±0.15
( 125±15 ) |
5 |
|
| Page Back |

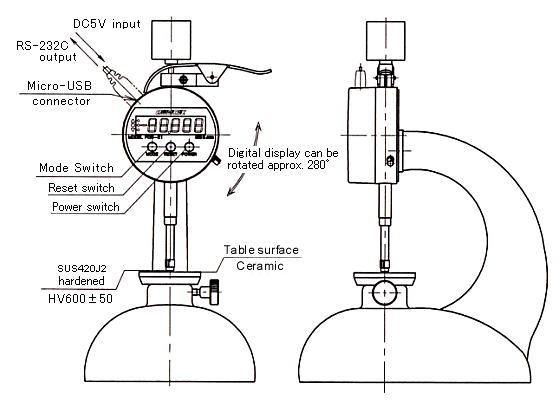

| Specifications Digital type FFD-1 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-1 |
0.001 |
20 |
±4 |
55 |
5 |
40 |
1.25±0.15
( 125±15 ) |
5 |
| Display |
LED display For 0.001mm 5 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
| Page Back |
|
Design and specifications are subject to change without notice for future
improvement.
