| Constant Pressure Thickness Gauge; FFA-10, FFD-10 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Common fabric (basic). |
L 1096 |
FFA-10, FFD-10 |
| Adhesive interlined cloth (common weave). |
L 1086 |
FFA-10, FFD-10 |

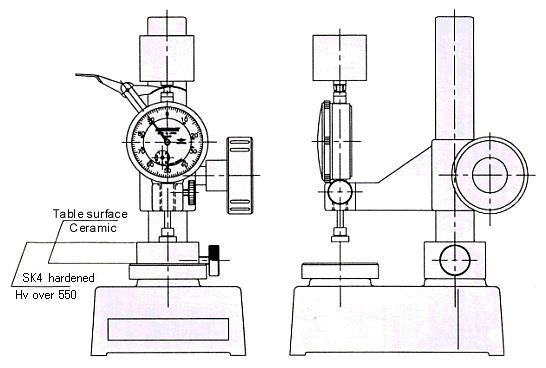

 Specifications Stand type FFA-10 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-10 |
0.01 |
10 |
±20 |
55 |
11.3
( 1cm² ) |
50 |
less than 2.35
( less than 240 ) |
10 |
|
| Page Back |

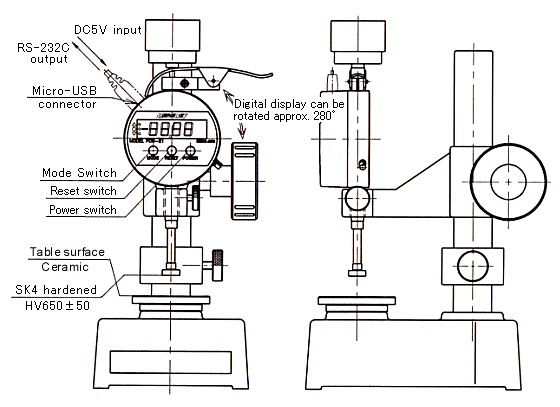

| Specifications Digital type FFD-10 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-10 |
0.01 |
20 |
±20 |
55 |
11.3
( 1cm² ) |
50 |
less than 2.35
( less than 240 ) |
10 |
| Display |
LED display For 0.01mm 4 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
