| HOME > Product Information > Thickness Gauges |
|
| Constant Pressure Thickness Gauge; FFG-12, FFA-12 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Unwoven / interlined cloth (non-standard). |
L 1085 |
FFG-12, FFA-12 |
| Adhesive interlined cloth (non-woven). |
L 1086 |
FFG-12, FFA-12 |

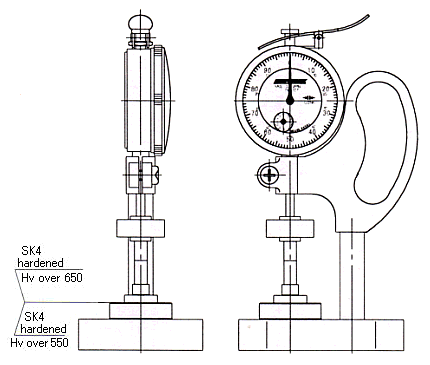

 Specifications Compact type FFG-12 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-12 |
0.01 |
10 |
±22 |
24 |
16
( 2cm² ) |
30 |
less than 0.4
( less than 40 ) |
15 |
|
| Page Back |

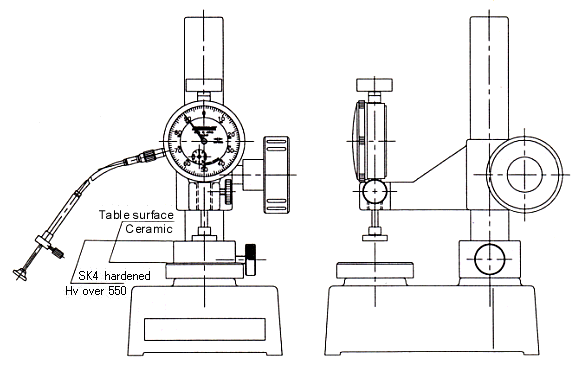

| Specifications Stand type FFA-12 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-12 |
0.01 |
10 |
±20 |
55 |
16
( 2cm² ) |
50 |
less than 0.4
( less than 40 ) |
15 |
|
| Page Back |
|
