| HOME > Product Information > Thickness Gauges |
|
| Constant Pressure Thickness Gauge; FFG-2, FFA-2, FFD-2 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Polyvinyl chloride film. |
K 6732 |
FFG-2, FFA-2, FFD-2 |
|
|
|

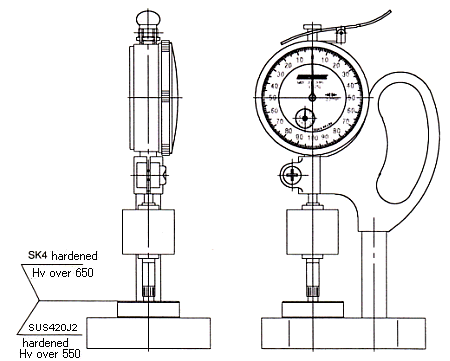

 Specifications Compact type FFG-2 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-2 |
0.001 |
2 |
±10 |
24 |
5 |
30 |
less than 0.8
( less than 80 ) |
5 |
|
| Page Back |

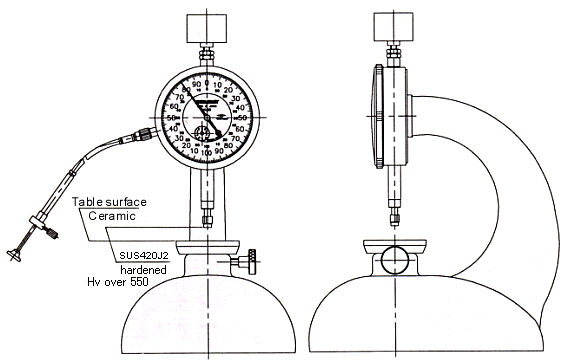

| Specifications Stand type FFA-2 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-2 |
0.001 |
2 |
±8 |
55 |
5 |
40 |
less than 0.8
( less than 80 ) |
5 |
|
| Page Back |

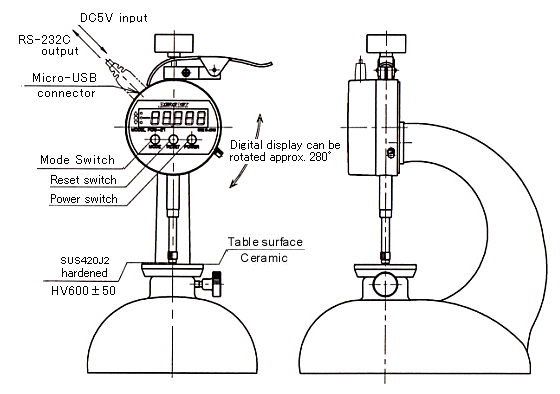

| Specifications Digital type FFD-2 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-2 |
0.001 |
20 |
±4 |
55 |
5 |
40 |
less than 0.8
( less than 80 ) |
5 |
| Display |
LED display For 0.001mm 5 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
| Page Back |
|
