| Constant Pressure Thickness Gauge; FFA-3, FFD-3 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Leather. |
K 6550 |
FFA-3, FFD-3 |
| Artificial leather. |
K 6505 |
FFA-3, FFD-3 |

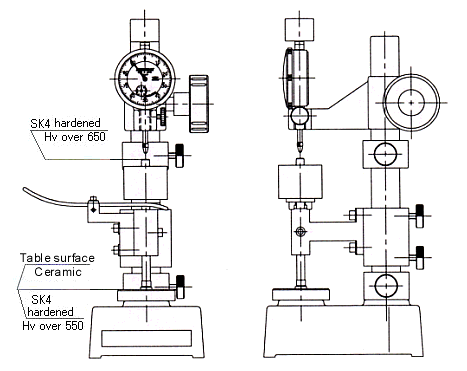

 Specifications Stand type FFA-3 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-3 |
0.01 |
10 |
±20 |
55 |
10 |
50 |
3.93±0.1
( 393±10 ) |
10 |
|
| Page Back |

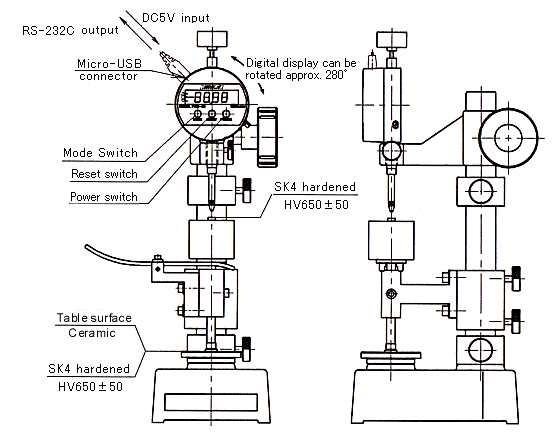

| Specifications Digital type FFD-3 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-3 |
0.01 |
20 |
±20 |
55 |
10 |
50 |
3.93±0.1
( 393±10 ) |
10 |
| Display |
LED display For 0.01mm 4 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
| Page Back |
|
