| HOME > Product Information > Thickness Gauges |
|
| Constant Pressure Thickness Gauge; FFG-4, FFA-4, FFD-4 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Sheet rubber. |
K 6328 |
FFG-4, FFA-4, FFD-4 |
|
|
|

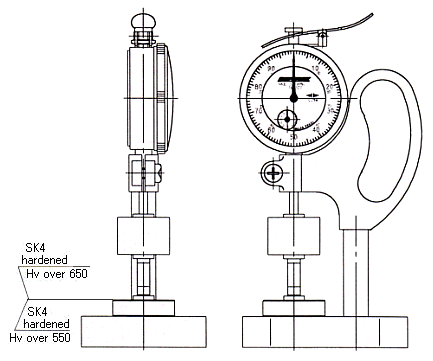

 Specifications Compact type FFG-4 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-4 |
0.01 |
10 |
±22 |
24 |
10 |
30 |
less than 0.785
( less than 80 ) |
7 |
|
| Page Back |

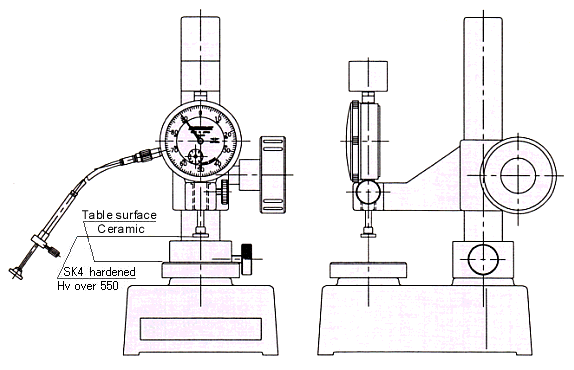

| Specifications Stand type FFA-4 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-4 |
0.01 |
10 |
±20 |
55 |
10 |
50 |
less than 0.785
( less than 80 ) |
7 |
|
| Page Back |

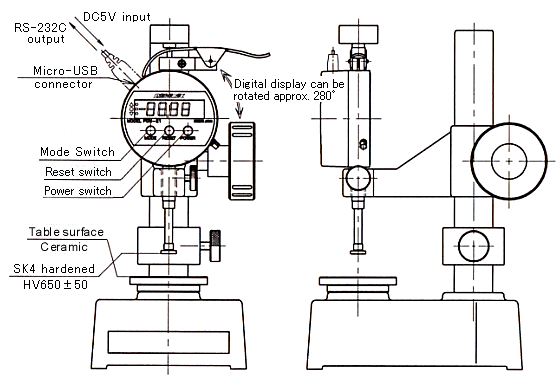

| Specifications Digital type FFD-4 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFD-4 |
0.01 |
20 |
±20 |
55 |
10 |
50 |
less than 0.785
( less than 80 ) |
10 |
| Display |
LED display For 0.01mm 4 digit |
| Power supply |
AC adapter ( AC100V - AC240V ) |
| Data output |
RS-232C |
|
| Page Back |
|
