| Constant Pressure Thickness Gauge; FFG-5, FFA-5 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø5mm |
K 6250A |
FFG-5, FFA-5 |
|
|
|

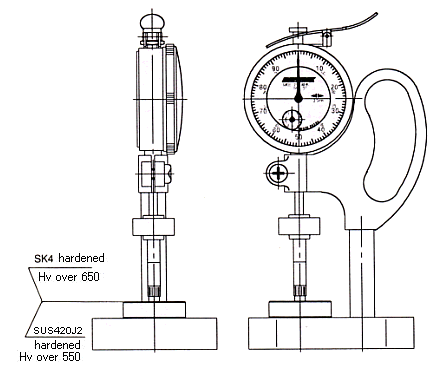

 Specifications Compact type FFG-5 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-5 |
0.01 |
7 |
±22 |
24 |
5
( 19.625mm² ) |
30 |
0.196±0.04
( 20±4 ) |
5 |
|
| Page Back |

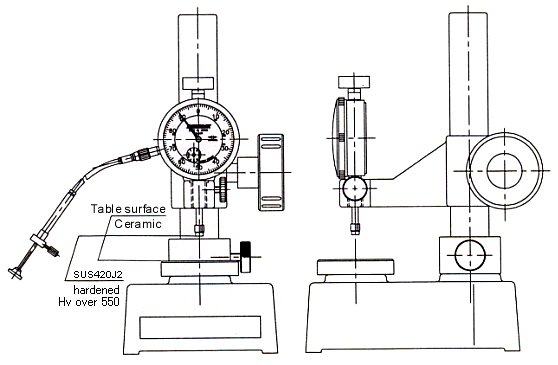

| Specifications Stand type FFA-5 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-5 |
0.01 |
7 |
±20 |
55 |
5
( 19.625mm² ) |
50 |
0.196±0.04
( 20±4 ) |
5 |
|
