| Constant Pressure Thickness Gauge; FFG-9, FFA-9 |
( Special Order )
| Measuring material |
JIS. NO |
Applied Model |
| Urethane form. |
K 6402 |
FFG-9, FFA-9 |
|
|
|

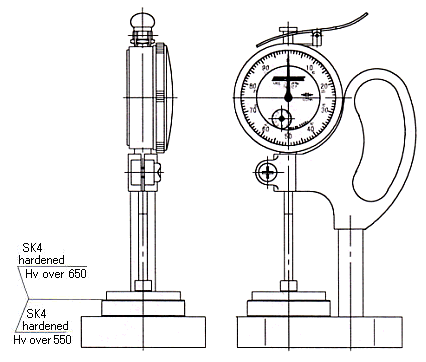

 Specifications Compact type FFG-9 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFG-9 |
0.01 |
10 |
±22 |
24 |
35.7
( 10cm² ) |
40 |
less than 0.363
( less than 37 ) |
25 |
|
| Page Back |

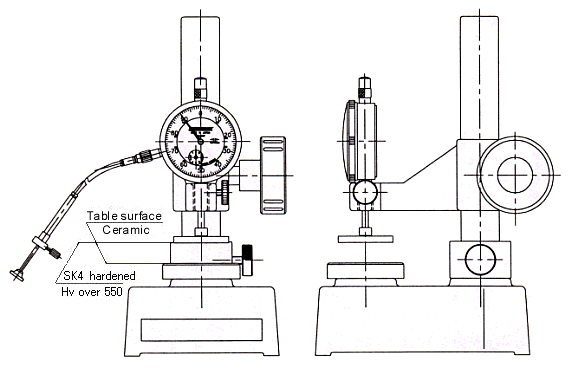

| Specifications Stand type FFA-9 |
| Model |
Graduation
(mm) |
Range
(mm) |
Indicator error
(µm) |
Throat depth
(mm) |
Contact Point dia
(Ømm) |
Anvil dia
(Ømm) |
Measuring force
N(gf) |
Parallelism
(µm) |
| FFA-9 |
0.01 |
10 |
±20 |
55 |
35.7
( 10cm² ) |
50 |
less than 0.363
( less than 37 ) |
25 |
|
