Dial Gauge Stands

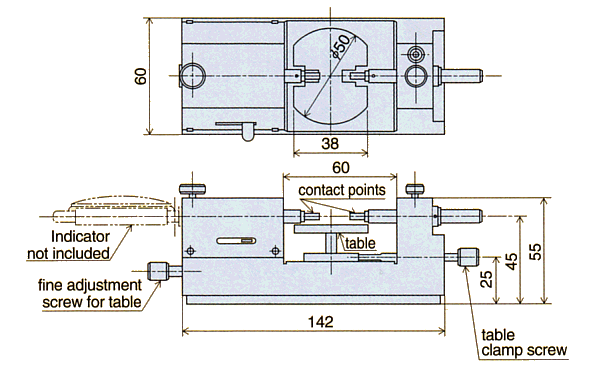

Economy-wise popular stand Model SIS-6 ( Discontinued ) New Type SIS-6C  -> Specifications Model Table surface Table size Effective moving range Allowable measuring depth Stem installed SIS-6  ( Discontinued ) Quench-hardened and polished 50mm diameter 0 to about 100mm Approximately 62.5mm 8mm dia.  Dimensions ( SIS-6 ) | Page Top | Stand designed for precision measurement of standard dial gauges, lever dial gauges and lever electric micrometers, rigid in construction and easy in fine adjustment of gauge indication by the original fine adjusting device. Model SIS-4 ( Discontinued ) New Type SIS-4F  ->  ( Includes fine adjustment function ) Specifications ( SIS-4 ) Model Base ( mm ) Main column ( mm ) Support column ( mm ) Weight ( kg ) Included attachments Height Length Width Diameter Length Diameter Length SIS-4 ( Discontinued ) 50 150 100 28 180 15 160 4.0 One attachment for plunger type dial indicators and one for lever-type dial indicators | Page Top | Horizontal Stands Comparator type suited for measuring and inspecting small parts. Model HS-25 ( Discontinued )  ( Indicator is not furnished ) Specifications ( HS-25 ) Model Measuring range Contact point ( mm ) Table heigth movement Table horizontal movement Stem installed HS-25 ( Discontinued ) 0 - 30mm Both ends ø 3mm flat 12mm 10mm ø 8mm  Dimensions ( HS-25 ) Contact point ( HS-25 ) Model XS-50 ( Standard type ) ( Discontinued ) XS-55 ( Blade type ) ( Discontinued ) XS-60 ( Blade type ) ( Discontinued ) | HOME | Product Information | Stands | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
