 Bench Centers |
 |
High-accuracy eccentricity tester used to measure eccentricity of articles
over a wide |
|
range of rotary cutting tools, arbors, crankshafts, gears, piston heads
or grinding stones |
|
and to check circles for roundness. |
|
| Model |
OA |
| Max. Center distance : 300mm |
|

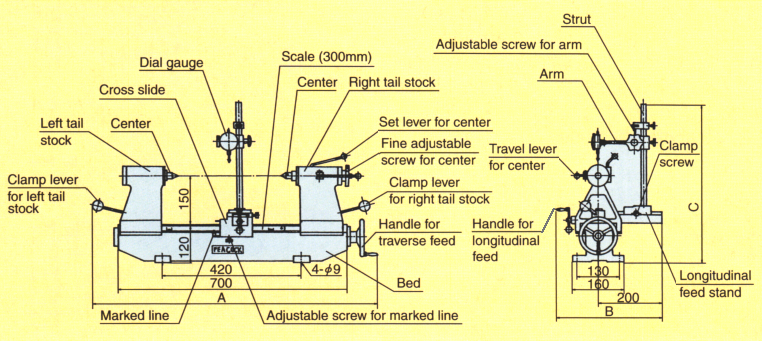

| Dimensions (OA) |
 |
| Specifications |
| Model |
Center distance
( mm ) |
Max. work
capacity dia.
( mm ) |
Use
center |
Overall dimensions |
Approx. weight
( ‚‹‚‡ ) |
Feed gear |
| (A) mm |
(B) mm |
(C) mm |
Right and left |
Back and forth |
| OA |
300 |
230 |
MT No.2 |
Approx. 875 |
Approx. 335 |
500 |
51 |
Screw feed |
Screw feed |
|
Design and specifications are subject to change without notice for future
improvement.
