Lever Type Dial Indicators Accessories

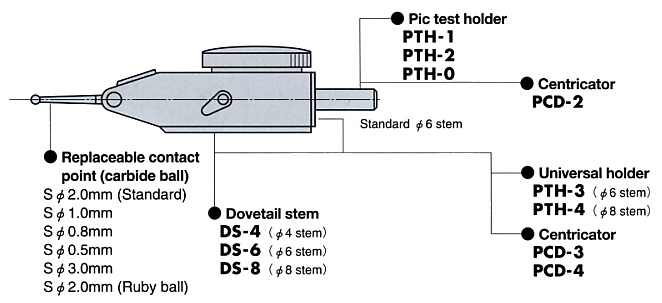

 Accessories (Option)
Replaceable contact point (carbide ball)
Pic test holder Universal holder
Centricator Dovetail stem
Right Angle Contact Point for PIC TEST ( XP1LX-2 )


Lever Type Dial Indicators Accessories
Lever Type Dial Indicators Accessories

Replaceable contact point (carbide ball)

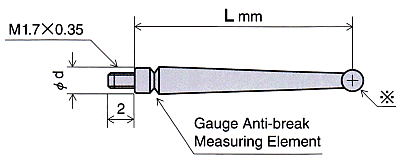

Replaceable contact point (carbide ball) Dimensions ; Contact Point

¦ Contact points with 2mm dia, super-hard are attached to all
Pic-Test and New Pic-Test indicators, 1.0mm, 0.8mm and
0.5mm dia, contact points are also stock items.
Sø2.0 dia, Ruby ball is also available

For Pic Test (Change lever type)
Part No. ø ball (mm) ‚k (mm) ød (mm) Applicable Indicator
XP1A-3 3 18.2 2.5 PC-1A, PC-1AE, PC-3, PC-1AV
XP1A-2 2
XP1A-2R (ruby ball) 2 PC-1A, PC-1AE, PC-3, PC-1AV, PC-1AR
XP1A-1 1 PC-1A, PC-1AE, PC-3, PC-1AV
XP1A-08 0.8
XP1A-05 0.5
XP1B-3 3 19.24 2.5 PC-1B, PC-1BE, PC-1BW, PC-1BV
XP1B-2 2
XP1B-2R (ruby ball) 2 PC-1B, PC-1BE, PC-1BW, PC-1BV, PC-1BR
XP1B-1 1 PC-1B, PC-1BE, PC-1BW, PC-1BV
XP1B-08 0.8
XP1B-05 0.5
XP1L-3 3 39.72 3.0 PC-1L, PC-1LE, PC-1LV, PC-3L
XP1L-2 2
XP1L-2R (ruby ball) 2 PC-1L, PC-1LE, PC-1LV, PC-3L, PC-1LR
XP1L-1 1 PC-1L, PC-1LE, PC-1LV, PC-3L
XP1L-08 0.8
XP1L-05 0.5
XP2-3 3 8.80 2.2 PC-2, PC-4, PC-2V
XP2-2 2
XP2-2R (ruby ball) 2 PC-2, PC-4, PC-2V, PC-2R
XP2-1 1 PC-2, PC-4, PC-2V
XP2-08 0.8
XP2-05 0.5

For New Pic Test (Without change lever type)
Part No. ø ball (mm) ‚k (mm) ød (mm) Applicable Indicator
XN1A-3 3 17.74 2.5 PCN-1A, PCN-0, PCN-1AE, PCN-1AD, PCN-5, PCN-7A, PCN-1AV
XN1A-2 2
XN1A-2R
(ruby ball)
2 PCN-1A, PCN-0, PCN-1AE, PCN-1AD, PCN-5, PCN-7A, PCN-1AU, PCN-5U
PCN-1AV, PCN-1AR, PCN-5R
XN1A-1 1 PCN-1A, PCN-0, PCN-1AE, PCN-1AD, PCN-5, PCN-7A, PCN-1AV
XN1A-08 0.8
XN1A-05 0.5
XN1B-3 3 18.63 2.5 PCN-1B, PCN-1BE, PCN-1BZ(A), PCN-1BZ(B), PCN-1BV
XN1B-2 2
XN1B-2R
(ruby ball)
2 PCN-1B, PCN-1BE, PCN-1BU, PCN-1BZ(A), PCN-1BZ(B), PCN-1BV, PCN-1BR
XN1B-1 1 PCN-1B, PCN-1BE, PCN-1BZ(A), PCN-1BZ(B), PCN-1BV
XN1B-08 0.8
XN1B-05 0.5
XN1L-3 3 39.00 2.5 PCN-1L, PCN-1LE, PCN-1LD, PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
XN1L-2 2
XN1L-2R
(ruby ball)
2 PCN-1L, PCN-1LE, PCN-1LD, PCN-1LU, PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
PCN-1LR
XN1L-1 1 PCN-1L, PCN-1LE, PCN-1LD, PCN-1LZ(A), PCN-1LZ(B), PCN-1LV
XN1L-08 0.8
XN1L-05 0.5
XN2-3 3 14.33 2.2 PCN-2, PCN-2E, PCN-6, PCN-2Z(A), PCN-2Z(B), PCN-2V
XN2-2 2
XN2-2R
(ruby ball)
2 PCN-2, PCN-2E, PCN-6, PCN-2U, PCN-6U, PCN-2Z(A), PCN-2Z(B), PCN-2V
PCN-2R, PCN-6R
XN2-1 1 PCN-2, PCN-2E, PCN-6, PCN-2Z(A), PCN-2Z(B), PCN-2V
XN2-08 0.8
XN2-05 0.5
XN2B-3 3 13.00 2.2 PCN-2B, PCN-2BD, PCN-7C, PCN-SD, PCN-2BV
XN2B-2 2
XN2B-2R
(ruby ball)
2 PCN-2B, PCN-2BD, PCN-7C, PCN-SD, PCN-2BU, PCN-2BV, PCN-2BR
XN2B-1 1 PCN-2B, PCN-2BD, PCN-7C, PCN-SD, PCN-2BV
XN2B-08 0.8
XN2B-05 0.5
XNS-3 3 8.13 2.2 PCN-S, PCN-SV, PCN-6S
XNS-2 2
XNS-2R
(ruby ball)
2 PCN-S, PCN-SU, PCN-SV, PCN-6S, PCN-SR
XNS-1 1 PCN-S, PCN-SV, PCN-6S
XNS-08 0.8
XNS-05 0.5


Page Top |


Pic test holder

PTH-1/PTH-2/PTH-0
  PTH-0 (Head only)

Dimensions ; PTH-1/PTH-2

PTH-1, PTH-2 ; ( ) PTH-2
Universal holder

PTH-3/PTH-4
Dimensions ; PTH-3/PTH-4

PTH-3, PTH-4 ; ( ) PTH-4


Page Top |


Centricator (Pic Test Indicators supplied on request)
PCD-2 Dimensions ; PCD-2
PCD-2

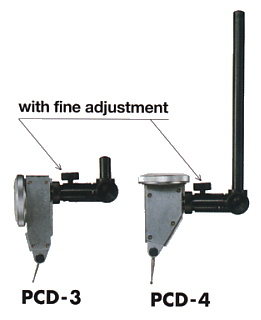

PCD-3/PCD-4

Dimensions ; PCD-3/PCD-4

PCD-3, PCD-4 ; ( ) PCD-4
Dovetail stem
DS-4/DS-6/DS-8



Page Top |


Right Angle Contact Point for PIC TEST ( XP1LX-2 )
 Unique Contact Point not existing before!
Part No. XP1LX-2 PAT. No. 3065810
A Contact Point end bent at a right has made it possible to make a measurement of an object that
used to be impossible to measure!
Set the Contact Point so that it is horizontal and perpendicular to work.
Contact Point No. XP1LX-2
The Contact Point enable a measurement of a recessed
portion located at the back of a project portion that would
not be possible by the use of an existing Contact Point.

To use a Contact Point end bent at a right angle XP1LX-2
has made it possible to make a measurement of an object
that used to be impossible to measure!

Note) Dimension of Contact Point is for PC-1L.
( Dial Test Indicator )

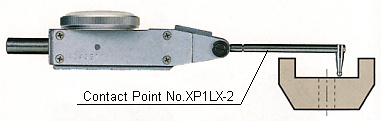

Picture: Model No. PC-1L
with Contact Point XP1LX-2
PC-1L ( with Contact Point XP1LX-2 )

Also makes it possible to measure the
parallelism and run-out of grooves on
diffrent levels.

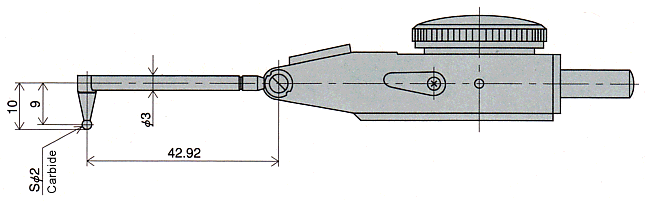

Dimension ( Contact Point XP1LX-2 )
Dimension ( Contact Point XP1LX-2 )
