Accessories for Dial Gauges


 Accessories for Dial Gauges
Replaceable contact points
Backs Contact Point joint
Outer dial plates Lifting lever for spindle (LL-1)
Color Caps Pull-up of spindle release
Repair Tools Easily attachable adhesive limits
Holder for 196B


Accessories for Dial Gauges; Contact Point joint
To extend the contact point, simply add the contact point joint.

Type Ø4mm
Contact Point joint ; ƒÓ4mm Type
* Type XJ-406 5mm


Type Ø5mm
Contact Point joint ; ƒÓ5mm Type
L mm 6mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm
Ø4mm Type XJ-406 XJ-410 XJ-415 XJ-420 XJ-425 XJ-430 XJ-435 XJ-440 XJ-445
Ø5mm Type XJ-510 XJ-520 XJ-530 XJ-540
 * Type XJ-406 5mm
L mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 90mm 100mm
Ø4mm Type XJ-450 XJ-455 XJ-460 XJ-465 XJ-470 XJ-475 XJ-480 XJ-490 XJ-400
Ø5mm Type XJ-550 XJ-560


Page Top |

 Accessories for Dial Gauges; Baxks
 The method of holding the dial gauge comes in two types; holding the stem and holding the lug of the back.
 However, the back may be replaced for convenience of holding.
Center lug back
Center lug back ; GB-1A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-1A 46.0 107, 107Z, 17Z, 57, 17, 17B
5Z, 15Z, 207S, 207W, 18, 5B
GB-115 50.2 25S
GB-125 59.5 25, 55, 207
GB-1307 69.8 307
GB-1507 76.7 507, 509
GB-1809 105.0 809
GB-147 30.7 47, 47Z, 47SZ
GB-136 35.8 5S, 36A, 36B
GB-157S 35.3 57S
GB-1DX 50.2 55DX, 56, 107DX, 307S, 5DX
Flat back
Flat back ; GB-3A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-3A 46.0 107, 107Z, 17Z, 57, 17, 17B
5Z, 15Z, 207S, 207W, 18, 5B
GB-315 50.2 25S
GB-325 59.5 25, 207
GB-355 59.5 55
GB-3307 69.8 307
GB-3507 76.7 507, 509
GB-3809 105.0 809
GB-347 30.7 47, 47Z, 47SZ
GB-336 35.8 5S, 36A, 36B
GB-357S 35.3 57S
GB-3DX 50.2 55DX, 56, 107DX, 307S, 5DX
Post back
Post back ; GB-4A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-4A 46.0 107, 107Z, 17Z, 57, 17, 17B
5Z, 15Z, 207S, 207W, 18, 5B
GB-447 30.7 47, 47Z, 47SZ
Screw back
Screw back ; GB-5A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-5A 46.0 107, 107Z, 57, 17, 5B, 5Z, 17B
15Z, 207S, 207W, 18
GB-547 30.7 47, 47Z, 47SZ
GB-536 35.8 5S, 36A, 36B
GB-557S 35.3 57S
Adjustable back
Adjustable back ; GB-6A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-6A 46.0 107, 107Z, 57, 17, 5B, 5Z, 17B
15Z, 207S, 207W, 17Z, 18
GB-625 59.5 25, 55, 207
GB-647 30.7 47, 47Z, 47SZ
GB-636 35.8 5S, 36A, 36B
GB-657S 35.3 57S
Lug back with lever
Lug back with lever ; GB-7A

Part No. Outer dia.
(Ømm)
Dial Gauge installable
GB-7A 46.0 107, 107Z, 57, 17, 5B, 5Z, 17B
15Z, 17Z, 18

Page Top |

Accessories for Dial Gauges; Outer dial plates

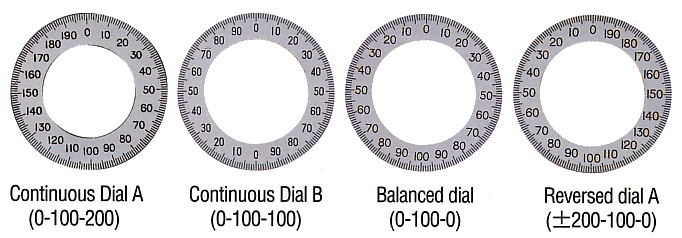

Outer dial plates 0.001mm type
Outer dial plates 0.001mm type
Applicable Models ; 5B-HG, 5B, 5F, 5-SWF
We can manufacture outer dials for other 0.001mm dial indicators.
  ( examples ; 25, 55, 55-DX )
We can manufacture outer dials with counter clock wise numbering.

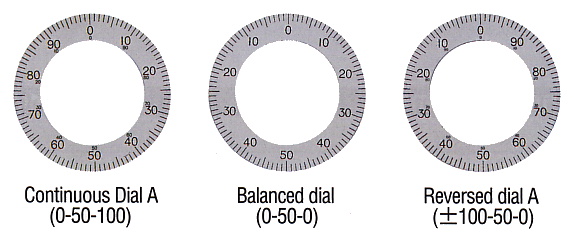

Outer dial plates 0.01mm type
Outer dial plates 0.01mm type
Applicable Models ; 107-HG, 107, 107F, 107-SWA, 107-BL, 107F-RE, 107-LL, 17, 57-SWA, 57, 57F
We can manufacture outer dials for other 0.01mm dial indicators.
  ( examples ; 47, 57S, 36B )


Page Top |

Lifting lever for spindle (LL-1)
Lifting lever LL-1
Lifting lever ; LL-1



Part No. Dial Gauge installable
LL-1 107, 107F, 57, 57B, 57F, 17
17B, 5B, 5F, 55, 55DX, 25S
56, 17Z, 15Z, 207S

Page Top |

Pull-up of spindle release
Release
Release



Part No. Dial Gauge installable
RE-1 10F-RE, R1-B
RE-2 25F-RE, R1-A

 ( Total length ; 280mm )


Page Top |

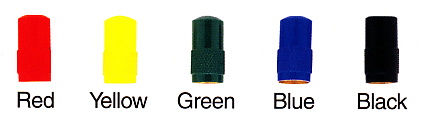

Accessories for Dial Gauges; Color Caps
Color Caps
 To manage the measurement by dial gauges, caps with five different colors are available.
 They are attachable to standard dial gauges.
 ( No. 5, 107, 15, 17, 18, 55, 56 and 25S )
Color Caps


Page Top |

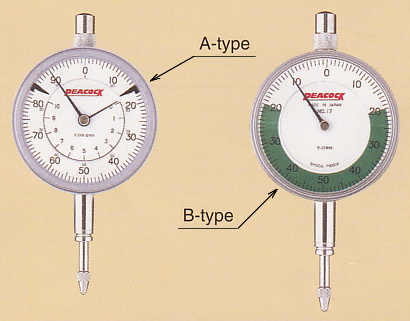

Easily attachable adhesive limits
Limits

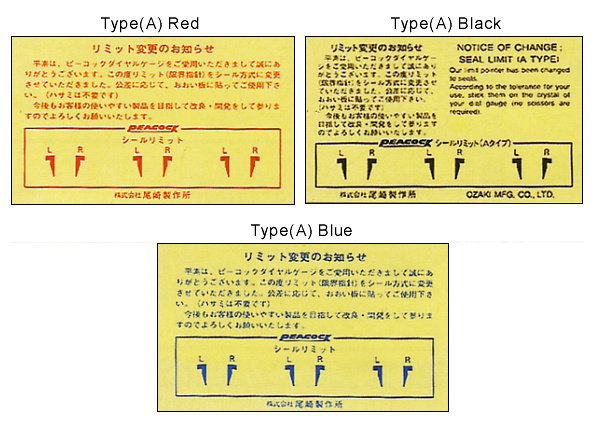

Limits A type

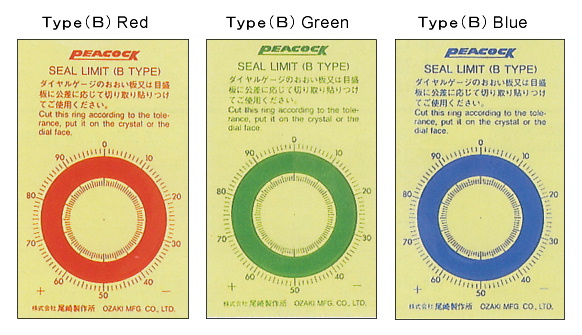

Limits B type
Examples of limit stickers
Examples of limit stickers


Page Top |

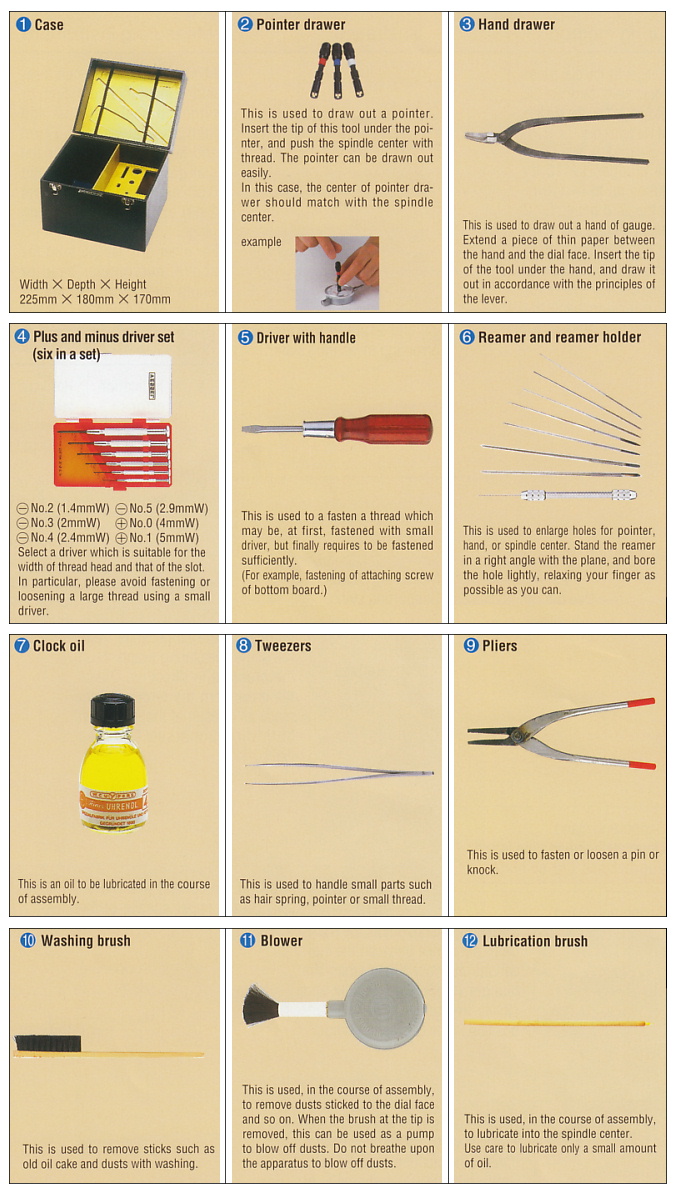

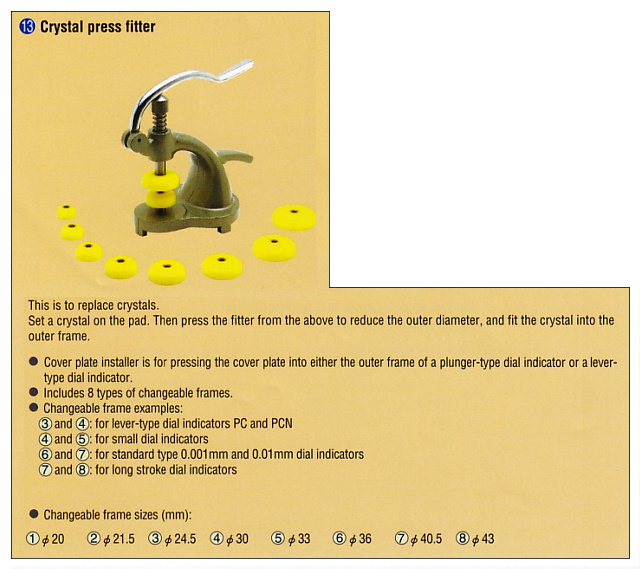

Accessories for Dial Gauges; Repair Tools
Repair Tools
 The tools in the table below are available either in a set or individually.
Repair Tools
Repair Tools
