Digital Indicators Cordless Type


The batteries in these digital indicators have a service life of approximately 3000 hours under
   normal use.
Digital display can be rotated (approx. 270º) to easily legible positions.
Very compact, and long 25mm stroke. (DG-205/DG-257)
RS-232C data output capability.
Clear LCD display.

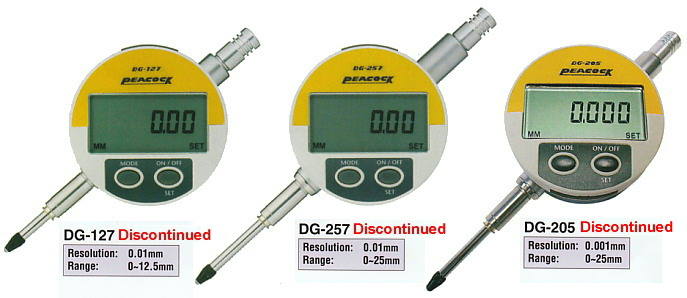

DG-127/DG-257/DG-205
Optional accessories
KB-205C (Opto-cable)

Option KB-205C

For direct RS-232C Connection to your PC.
RE-205 (Release)

Option RE-205
Lifting range (0 - 12mm)

KB-205USB (Opto-cable)
Option KB-205USB
Type ; USB

LL-205 (Lifting Lever)
Option LL-205

Lifting range (0 - 25mm)

Specifications
Model DG-205 (Discontinued) DG-257 (Discontinued) DG-127 (Discontinued)
Range 25mm 25mm 12.5mm
Resolution 0.001mm 0.01mm
Accuracy
(excluding quantized error)		 0.003mm 0.01mm
Display (LCD display) 6 digit -999.999 with (-) symbol 5 digit -999.99 with (-) symbol
Measuring force
(when correctly positioned)		 Less than 1.1N Less than 1.1N Less than 0.95N
Operating temperature +5 - 40ºC
Battery One CR-2032 type lithium battery (included)
Data output RS-232C port (opto-cable sold separately)
Mounting method Supported by ø8mm stem, (Lug back, GB-1205 is optional)
Contact point M2.5 × 0.45 Thread with carbide ball (XB-1)
Functions
ZERO RESET
PRESET
DATA HOLD
Low battery warning display ........ "B" signifies low battery
Display rotation ........ Display can be rotated upside-down,
 sideways or angled for easy reading
Counting direction conversion ........ Plus and minus directions,
 for spindle movement, can be selected.

Dimensions (DG-205 / DG-257)
Dimensions DG-205/DG-257
