Linear Gauges 10, 20mm range


Linear Gauges 10, 20mm range

Specifications | Options | Dimensions | Common Specifications of Linear Gauges |
Measurement range (0 - 20mm)
 * 10mm and 20mm measurement ranges are the easiest to use.
 * Used in conjunction with digital counters, these gauges can be set up in places
    where dial gauges are now being used.
 * Set the gauge by either stem or lug back.
 * For lifting spindle, both lever and release types are available.
 Rectangular wave output typ (DN-10/DN-10S/DN-20/DN-20S)
   * For use in electrically noisy environments.
   * For applications requiring extra long cables. (10 to 50 meters are available)

Output wiring (DN-10/DN-20)

Output wiring (DN-10/DN-20)

Output wiring (DN-10S/DN-20S)
Output wiring (DN-10S/DN-20S)

Specifications

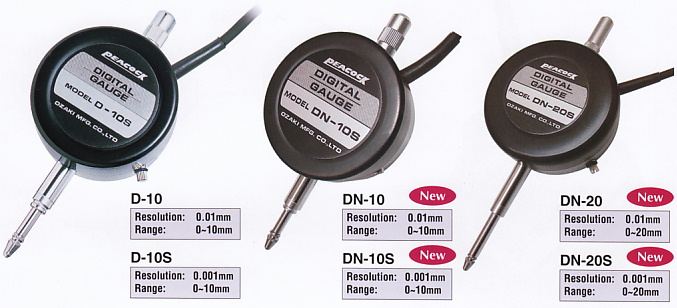

Model D-10 D-10S DN-10 DN-10S D-20 D-20S DN-20 DN-20S
Range 10mm 20mm
Resolution 0.01mm 0.001mm 0.01mm 0.001mm 0.01mm 0.001mm 0.01mm 0.001mm
Accuracy (excluding
quantized error)
0.005mm 0.002mm 0.01mm 0.002mm 0.005mm 0.003mm 0.01mm 0.003mm
Measuring force Less than 1.0N Less than 1.5N
Cable length 2m
Mounting method Ø8mm stem or 6.5mm hole on lug back
Contact point M2.5 × 0.45 SØ2.4mm steel (X-2)
Operating temperature 0 - 40ºC
Weight 220g 300g

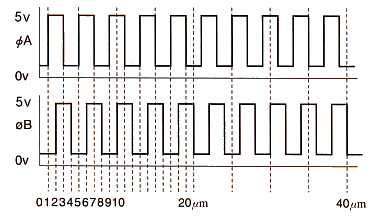

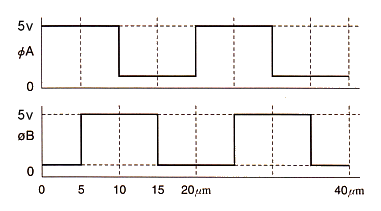

Output Signal 90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Rectangular wave (L=0v H=5v)
Compatible standard
counters
C-500 / C-700
CM-5B (*except DN-10S, DN-20S)
Options * Release (RE-4L)  Lifting lever (LL-1)
* Dust proof rubber (BG-10)
* Flat back (GB3-D1O) , screws (S-110)
* Release (RE-4L)
* Flat back (GB3-D20)
* Customer must specify if application is up-side-down.
  The measuring force changes when the gauge is inverted.
* Features
   DN-10 DN-10S DN-20 DN-20S
    1. Recommended for locations where cable extension (10 to 50 meters) is necessary.
    2. Recommended for use in electrically noisy environments.
       Notes of wiring : A signal wire should be duct wiring apart from other Power lines.

Options

Split collar(WB-1)

Split collar (WB-1)
Split collar above is used on the Ø8mm stem
during mounting to prevent malfunction due over
tightening.
Securing by means of screw directly in stem may
result in malfunction
.

Dust proof rubber(BG-10)
Dust proof rubber (BG-10)
Compressible dust proof rubber fits all D-5, D-5SC
D-10S ,D-10SS ,D-10HS gauges.
(Stroke under 10mm)

Release(RE-4L)
Release (RE-4)
Total length 300mm

Lifting lever(LL-1)
Lifting lever (LL-1)

Extension cable
Extension cable
2, 3, 5 and 10 meters are standard lenght.

Extension cable with metal sheathing
Extension cable with metal sheathing
2 and 3 meters are standard lenght.

Dimensions

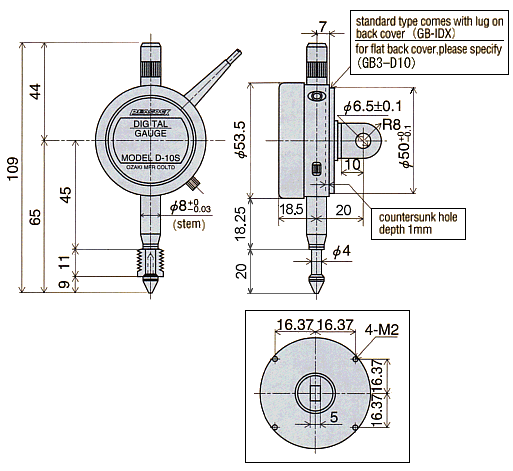

D-10 / D-10S / DN-10 / DN-10S / D-10SS

Dimensions D-10/D-10S/DN-10/DN-10S/D-10SS

D-20 / D-20S / DN-20 / DN-20S
Dimensions D-20/D-20S/DN-20/DN-20S
