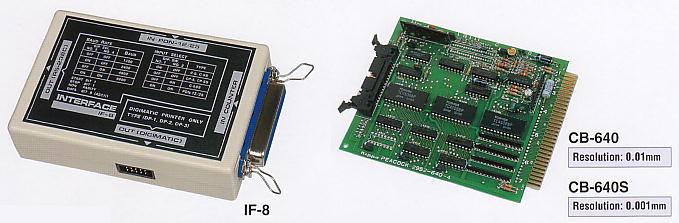

Counter Board & RS232C Interface Adapter
IF-8, CB-640, CB-640S ; Discontinued
| * Counter board suitable for system installation. * Board used as a counter in multi-point measurement control. * In data communications with computer by RS-232C interface (IF-8). |
 |
Counter Board & RS232C Interface Adapter
| Specifications | Specifications | |||
| Model | IF-8 | Model | CB-640 | CB-640S |
| Input | Test equipment's (counter) BCD signal | Resolution | 0.01mm | 0.001mm |
| Output | * RS-232C port * For digimatic |
Number of digits | 999.99 with ± symbol | 99.999 with ± symbol |
| Response speed | 600mm / sec. | 300mm / sec. | ||
| Power supply | Activated by power supplied from test equipment (Counter) (activated by +12V & +5V 6OmA) |
Input frequency | DC - 50KHz | DC - 40KHz |
| Power supply | DC12V ±0.1 2OmA (excludes voltage consumption from gauge) |
|||
| Number of channels |
1 | Preset in put function |
5 digits setting capability | |
| Receive commands |
* Send data request --- [ T ] [ t ] * RESET request ----- [ R ] [ r ] * LATCH request ----- [ L ] [ l ] * LATCH cancel ------ [ N ] [ n ] |
Reset input | RESET IN (1m sec or more) | |
| Number of channels |
1 (one per gauge) | |||
| Dimensions | Height 150mm, Width 120mm | |||
| Baud rates | 1200 / 2400 / 4800 / 9600 convertible | Output BCD (1) | Socket HIF3A-30D-2.54R (Hirose brand) constant tactor output |
|
| Outer dimensions | 125(W) × 80(D) × 33(H) mm | |||
| Accessories | * BCD input cable ----- 1.5m (1 pc) * RS-232C output ----- 1.5m (1 pc) |
Output BCD (2) | Card edge side (A side 30, B side 30 pins) Card edge CR13-60D-3.17 (Hirose brand) Three state output (MC14508 equivalent) Positive logic, parallel digits (L=0V H=12V) |
|
| Functions | * START BIT ----- 1 STOP BIT ------ 1 ASCII. --------- 8 BIT * RS-232C output and Digimatic output cannot be used simultaneously. |
Compatible linear gauges |
DL-2, D-5, D-10, D-20, D-50, D-100, D-5UZ |
DL-2S, D-5S, D-10S, D-20S, D-50S, D-100S |
| * Connecting cable to be attached differs depending on type of measuring instrument used. Please specify measuring instrument used when ordering (Instrument at both the input and output side) |
* Power supply, display or connectors are not provided with PC boards. * When mounting two or more boards, minimum permissible spacing between each slot is 20mm. |
|||
