Digital Comparators
Pass/Fail System
;Discontinued
| * Units to extend judgement function for C-5 and C-5S (COM-5). * Units to extend judgement function for CP-5 and CP-5S (COM-6). * Results of judgement on LED display and output for control by relay contact. |
|
 |
 |
Digital Comparators Pass/Fail System
| Specifications | ||
| Model | COM-5 | COM-6 |
| Judgement setting | 5 digits with ± digital switch ± sign (-99.999 -- +99.999) |
6 digits with ± digital switch ± sign (-999.999 -- +999.999) |
| Outer dimensions | 200(W) × 230(D) × 55(H) mm | 240(W) × 230(D) × 55(H) mm |
| Compatible counters | C-5, C-5S Discontinued (Only stock is supplied) |
CP-5, CP-5S Discontinued |
| Power supply | Operate from power source of counter (+12V 80mA) | |
| Judgement | -NG, OK, +NG | |
| Judgement display | -NG(Yellow), OK(Green), +NG(Red) | |

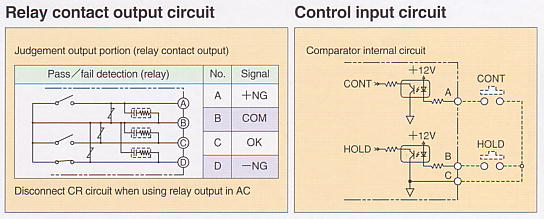

| Judgement output | Relay contact (with contact protection circuits) ------ a contact point (MATSUSHITA NR-H-12V or equivalent parts) Contact capacity AC110V 5VA (DC 30V 1A) |
|
| Output receptacle | PRC03-23A10-4M (Tajimi brand) (One Plug PRC03-12A10-4F10.5 included) |
|
| Response speed | Generally less than 20msec (depends on relay contactor's speed) | |
| Accessories | * BCD signal cable (40cm) ---------- 1 Pc. * Pass/fail detection output plug ----- 1 Pc. * Plate tor mounting to counter ------ 2 pcs. |
|
| Functions | * Constant output display of -NG, OK or +NG at the time of power up. * The set value LOWER is OK. (at time of shipment) * The set value UPPER is NG. (at time of shipment) |
|
| Options | * Control input (control input for acceptance/rejection judgement) To display and output relay contact at the state of CONTROL ON. Available as optional terminal on the back panel (PRC03-23A10-3M) * Buzzer A buzz is heard to indicate if judgement is -NG, OK or +NG. |
|
| Further applications | * When two comparators are connected, multi-stage judgement is possible (BCD cable for branching is necessary). (e.g. capable of diversified classification such as -NG, OK1, OK2, OK3 and +NG) |
|
 |
| COM-5 dimensions within ( ) are for COM-6  |
