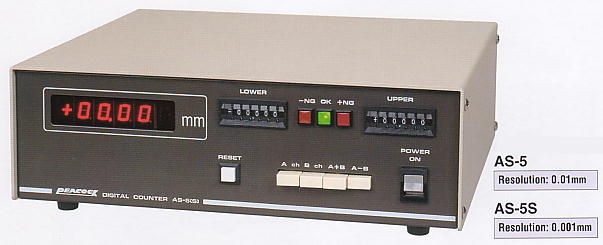

Addition/Subtraction Counter
AS-5, AS-5S ; Discontinued

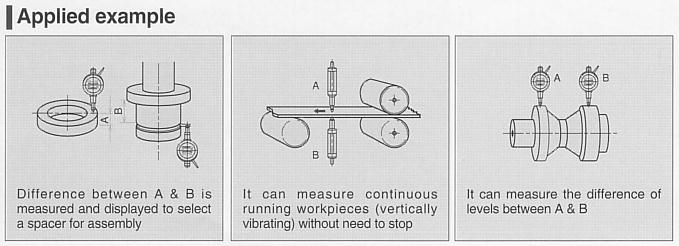

| * These counters can calculate and display addition (ADD) and subtraction (SUB). * They work best and most effectively when they are used for a continuous flow of workpieces. * With judgement function of +NG, OK, -NG. |
 |
Addition/Subtraction Counter
| Specifications | ||
| Model | AS-5 | AS-5S |
| Resolution | 0.01mm | 0.001mm |
| Display | LED (red) display ±99.99 | LED (red) display ±99.999 |
| Judgement setting | 5 digits with digital switch ±sign (±99.99) | 6 digits with digital switch ±sign (±99.999) |
| Response speed | 600mm / sec | 300mm / sec |
| Quantizing error | 1 count | |

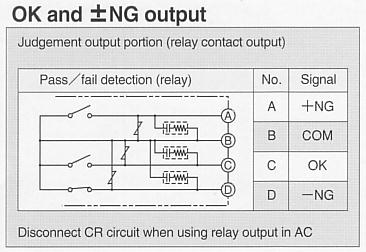

| Judgement output | Relay contact output (contact point "a"). Relay (G6E-184P-US DC12V OMRON) | |
| Display selection switch | 4 interlocking switches: [A channel only], [B channel only], [A+B], [A-B] | |
| Data output | Outputs data of selected channel on display, BCD positive logic parallel (MC14050 equivalent part) |
|
| Operating temperature | 0 to 40ºC / storage at -10 to 50ºC | |
| Power supply | AC 100V(90 - 110V) 50/60Hz (2m power cable with plug) | |
| Weight / Dimensions | 5kg / 300(W) × 280(D) × 110(H) mm (except for rubber foot portion 10mm) | |
| Functions | * Addition (ADD) and Subtraction (SUB) can be performed within maximum
display range AS-5 ----- 0 to ±99.99 AS-5S ---- 0 to ±99.999 * RESET is simultaneously activated for both A & B channels |
|
| Compatible linear gauge (requires 2 linear gauges) |
DL-2, D-5, D-10, D-20, D-50, D-100, D-5UZ, D-10N, D-20N |
DL-2S, D-5S, D-10S, D-20S, D-50S, D-100S |
| Accessories | * Judgement output connector ----- 1 pc ( PRCO3-12A10-4F10.5 TAJIMI ) | |
| Option | * Judgement output control connector | |
 |
 |
