Radius of Curvature with Multiplier Setting

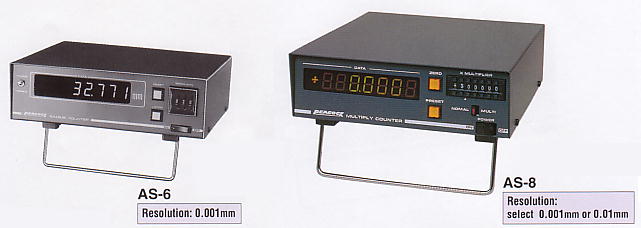

AS-6, AS-8 ; Discontinued
| * Measuring a part of the radius face, computing and displaying curvature's
radius (AS-6). * Measuring radius of complicated design curve. * Measured values are multiplied by set values and displayed: magnification is freely changeable. (AS-8) (For example, measurement using lever indicators or optical magnification instruments and etc.) |
 |
Radius of Curvature with Multiplier Setting
| Specifications | |
| Model | AS-6 |
| Resolution | 0.001mm |
| Radius of curvature | 0 to R =9999.999mm (about 10m) |
| Calculation formula for radius of curvature (R) |
 |
| Span setting (a) | Digital switch (setting 6 digits) |
| Span setting range | 0.001 - 999.999mm |
| Display selection | NORMAL and RADIUS |
| Quantizing error | 1 count |
| Data output | Centronics compliant (can be connected to printer PDP-1) |
| Data hole | Holding with LATCH switch ON |
| Power supply | AC100V (90V - 110V) 50/60Hz |
| Weight | 2.2kg |
| Outer dimensions | 200(W) × 230(D) × 60(H) mm |
| Functions | * [Error] will display when RADIUS is commanded and counter is set to NORMAL 0.000. (Since radius of curvature becomes infinite.) * When radius of curvature is 10m or more, [ERROR] will display due to exceeding display range. |
| Compatible linear gauges | D-5S, D-10S, D-20S |

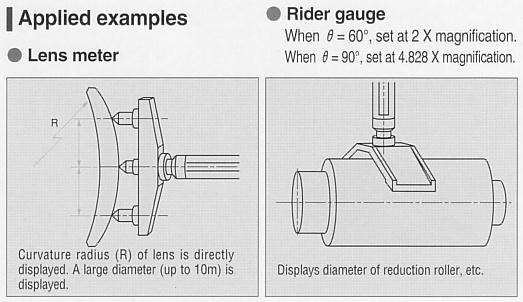

| Options | * Rider gauge (It is custom-made for your specified span) * Lens meter (It is custom-made for your specified diameter) |
|
|
|
| Specifications | |
| Model | AS-8 |
| Resolution | 0.001mm / 0.01mm |
| Display selection | * NORMAL ---- displays displacement as it is * MULTI ------ displays multiplier |
| Display digit | 6 digits / 7 digits with LED ±(6 digits setting at shipment) |
| Multiplier calculation | NORMAL value × Set value (0.000 × *.****) |
| Multiplier setting | 6 digits digital switch (0.00001 - ±9.99999) |
| Data output | BOD parallel digits, positive logic |
| Power supply | AC100V (90V - 110V) 50/60Hz |
| Weight | 2.3kg |
| Outer dimensions | 200(W) × 230(D) × 60(H) mm |

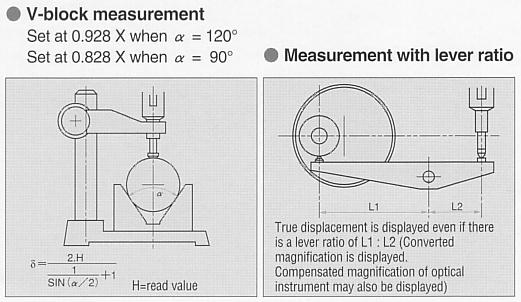

| Functions | * Various magnification (Example) Setting + 2.00000 = display by 2×magnification Setting + 5.00000 = display by 5×magnification Setting + 0.03937 = display in inch * Connected to a printer (PDP-1) for data recording. |
| Compatible linear gauges | Digital linear gauge (a gauge with 1µm resolution is used when using it at 1µm) |
| Options | * with external RESET/LATCH connector * with input by digital micrometer head |
 |
 |
