Digital Depth Gauge

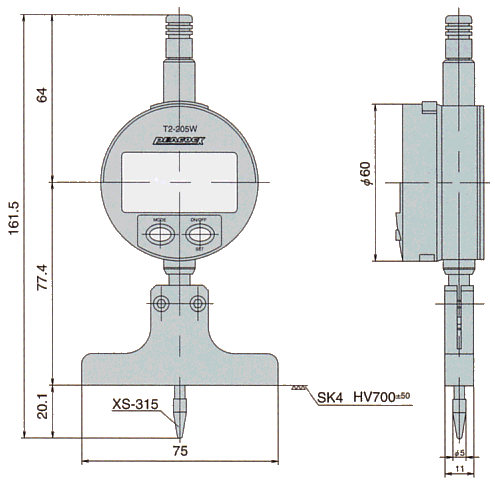

Custom order available Size of base and shape of contact point can be custom designed and manufactured according to your specific needs. Digital Depth Gauge Model T2-205W Discontinued Model T2-257W Discontinued Resolution 0.001mm Resolution 0.01mm Range 0 - 20mm Range 0 - 20mm Model T1-205 Discontinued Model T1-257 Discontinued Resolution 0.001mm Resolution 0.01mm Range 0 - 20mm Range 0 - 20mm Model T2-127 Discontinued Resolution 0.01mm Range 0 - 10mm Model T3-127 Discontinued Resolution 0.01mm Range 0 - 10mm Model T5-127 Discontinued Resolution 0.01mm Range 0 - 10mm Model T6-127 Discontinued Resolution 0.01mm Range 0 - 10mm Specifications Model T2-205W T2-257W T1-205 T1-257 T2-127 T3-127 T5-127 T6-127 Discontinued Discontinued Discontinued Discontinued Resolution 0.001mm 0.01mm 0.001mm 0.01mm 0.01mm 0.01mm 0.01mm 0.01mm Indication error (excluding quantized error) ±0.004mm ±0.02mm ±0.004mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm ±0.02mm Gauge type DG-205 DG-257 DG-205 DG-257 DG-127 DG-127 DG-127 DG-127 Measuring range 0 - 20mm 0 - 20mm 0 - 20mm 0 - 20mm 0 - 10mm 0 - 10mm 0 - 10mm 0 - 10mm Base flatness 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm 0.005mm Option -- -- 7 contact points 40 - 160mm (20mm intervals) -- -- -- -- Dimensions; T2-205W, T2-257W Dimensions; T1-205, T1-257 Dimensions; T2-127 Dimensions; T3-127 Dimensions; T5-127 Dimensions; T6-127 | HOME | Product Information | Digital Indicator Application Series | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
