 Standardization! To meet your needs. ( ball diameter 2mm type )
The use of a Cylinder Gauge enables an easy and precise measurement of
an
OVERPIN, which used to be difficult by the use of existing
measurement tools.
Dial gauge is not furnished and supplied only on request.
Suitable dial gauges are 17Z, 57B (0.01mm) and 15Z, 5F (0.001mm). |
 Cylinder Gauge for measuring OVERPIN Diameter of internal Gear |
 |
* The diameter of these balls
is a key point. |
Head details
Let us have the information on the size of
your OVERPIN..
SPECIAL GAUGES ARE AVAILABLE in
different measurement Ranges and
according to a ball diameter (pin diameter)
for use at request. |
|
| Specifications ; CC-1HA Series |
| Model |
OVERPIN
diameter range
(mm) |
Effective
measuring
range (mm) |
Wide range
accuracy (µm) |
Adjacent
error (µm) |
Repeated
accuracy (µm) |
Rod (mm) |
Washer (mm) |
| CC-124HA |
23.5～26.0 |
1.2 |
5 |
2 |
2 |
24 |
0.5, 1.0 |
| CC-126HA |
25.5～28.0 |
1.2 |
5 |
2 |
2 |
26 |
0.5, 1.0 |
| CC-128HA |
27.5～30.0 |
1.2 |
5 |
2 |
2 |
28 |
0.5, 1.0 |
| CC-130HA |
29.5～32.0 |
1.2 |
5 |
2 |
2 |
30 |
0.5, 1.0 |
| CC-132HA |
31.5～34.0 |
1.2 |
5 |
2 |
2 |
32 |
0.5, 1.0 |
| CC-134HA |
33.5～36.0 |
1.2 |
5 |
2 |
2 |
34 |
0.5, 1.0 |
| CC-136HA |
35.5～38.0 |
1.2 |
5 |
2 |
2 |
36 |
0.5, 1.0 |
| CC-138HA |
37.5～40.0 |
1.2 |
5 |
2 |
2 |
38 |
0.5, 1.0 |
| CC-140HA |
39.5～42.0 |
1.2 |
5 |
2 |
2 |
40 |
0.5, 1.0 |
| CC-142HA |
41.5～44.0 |
1.2 |
5 |
2 |
2 |
42 |
0.5, 1.0 |
| CC-144HA |
43.5～46.0 |
1.2 |
5 |
2 |
2 |
44 |
0.5, 1.0 |
| CC-146HA |
45.5～48.0 |
1.2 |
5 |
2 |
2 |
46 |
0.5, 1.0 |
| Length below grip |
150mm |
|
Ball diameter |
ø2mm |
|

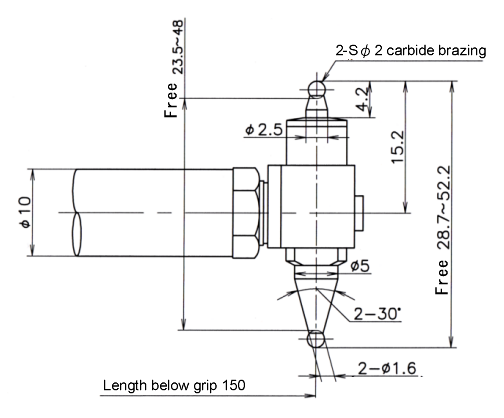

Dimensions ; CC-1HA Series
|
| Specifications ; CC-2HA Series |
| Model |
OVERPIN
diameter range
(mm) |
Effective
measuring
range (mm) |
Wide range
accuracy (µm) |
Adjacent
error (µm) |
Repeated
accuracy (µm) |
Rod (mm) |
Washer (mm) |
| CC-245HA |
44.5～50.5 |
1.2 |
5 |
2 |
2 |
45 |
0.5, 1.0, 2.0, 3.0 |
| CC-250HA |
49.5～55.5 |
1.2 |
5 |
2 |
2 |
50 |
0.5, 1.0, 2.0, 3.0 |
| CC-255HA |
54.5～60.5 |
1.2 |
5 |
2 |
2 |
55 |
0.5, 1.0, 2.0, 3.0 |
| CC-260HA |
59.5～65.5 |
1.2 |
5 |
2 |
2 |
60 |
0.5, 1.0, 2.0, 3.0 |
| CC-265HA |
64.5～70.5 |
1.2 |
5 |
2 |
2 |
65 |
0.5, 1.0, 2.0, 3.0 |
| CC-270HA |
69.5～75.5 |
1.2 |
5 |
2 |
2 |
70 |
0.5, 1.0, 2.0, 3.0 |
| CC-275HA |
74.5～80.5 |
1.2 |
5 |
2 |
2 |
75 |
0.5, 1.0, 2.0, 3.0 |
| CC-280HA |
79.5～85.5 |
1.2 |
5 |
2 |
2 |
80 |
0.5, 1.0, 2.0, 3.0 |
| Length below grip |
150mm |
|
Ball diameter |
ø2mm |
|

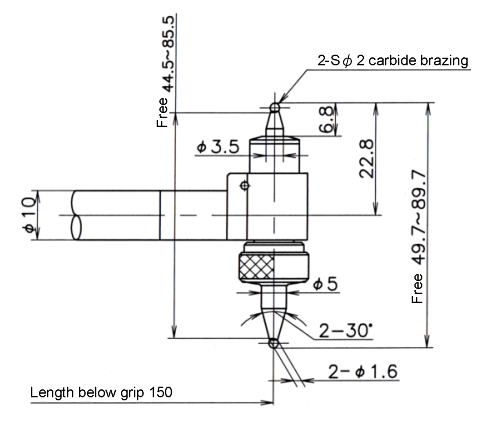

Dimensions ; CC-2HA Series
|
|
Design and specifications are subject to change without notice for future
improvement.
