| Model No. 5C Specifications | ||||||||||
| Graduation (mm) |
Range (mm) |
Reading | Indication error (µm) | Backward error (µm) |
Repeatability (µm) |
Measuring force less than (N) |
||||
| 1/10 revolution |
1/2 revolution |
One revolution |
Two revolutions |
Whole measuring range |
||||||
| 0.001 | 1 | 0-50-0 | 2.5 | ±3 | ±4 | ±4 | ±5 | 3 | 0.8 | 1.5 |

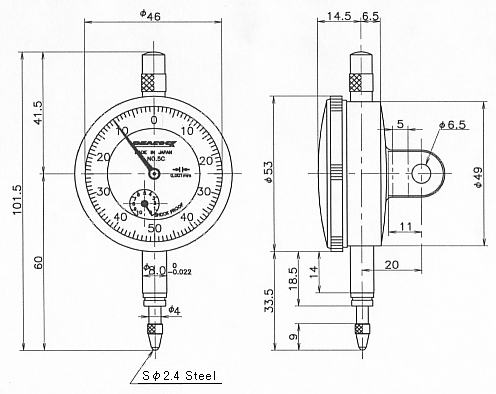

Model No. 5C Dimensions |
||||||||||
