Special Type Test Indicators ; Super low measuring force E series

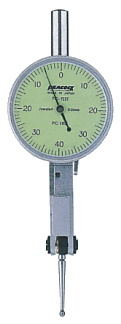

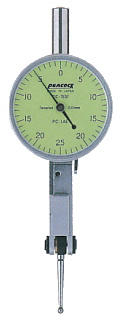

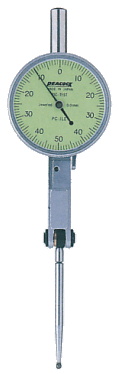

Lever dial gauge that is suitable for flaw-free measure of an object under measurement  and for measurement of plastic products with a low measuring force.   A measuring force is 0.05N, 0.1N or less that is lower than a 0.4N measuring force in  the conventional dial gauges.   Specifications and outer dimensions are the same as those of standard PC and PCN  types, except a measuring force. Super low measuring force E series ; Without change lever type (CW rotation only) Model PCN-1AE Graduation 0.01mm Range 0.5mm Measuring force 0.05N Contact Point No. XN1A-2 Model PCN-1BE Graduation 0.01mm Range 0.8mm Measuring force 0.05N Contact Point No. XN1B-2 Model PCN-1LE Graduation 0.01mm Range 1.0mm Measuring force 0.05N Contact Point No. XN1L-2    (L = 42.8mm) Model PCN-2E Graduation 0.002mm Range 0.28mm Measuring force 0.1N Contact Point No. XN2-2 Super low measuring force E series ; Change lever type Model PC-1AE Graduation 0.01mm Range 0.5mm Measuring force 0.1N Contact Point No. XP1A-2 Model PC-1BE Graduation 0.01mm Range 0.8mm Measuring force 0.1N Contact Point No. XP1B-2 Model PC-1LE Graduation 0.01mm Range 1.0mm Measuring force 0.1N Contact Point No. XP1L-2    (L = 43.0mm) Specifications Model Graduation (mm) Range (mm) Reading Accuracy MPE (µm)   Measuring force less than (N) 10 Scale 1 Rev. Wide-range Forward accuracy Hysteresis Repeatability PCN-1AE 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.05 PCN-1BE 0.01 0.8 0 - 40 - 0 5 -- 9 4 3 0.05 PCN-1LE 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.05 PCN-2E 0.002 0.28 0 - 140 - 0 2 -- 4 3 1 0.1 PC-1AE 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.1 PC-1BE 0.01 0.8 0 - 40 - 0 5 -- 9 4 3 0.1 PC-1LE 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.1 Accessories (Option) Dimensions Model L (mm) PCN-1AE 21.3 PCN-1BE 22.2 PCN-1LE 42.8 PCN-2E 17.94 Dimensions Model L (mm) PC-1AE 21.4 PC-1BE 22.4 PC-1LE 43.0 | HOME | Product Information | Lever Type Dial Indicators | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
