Special Type Pic Test Indicators ; Without stem type V series

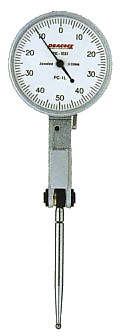

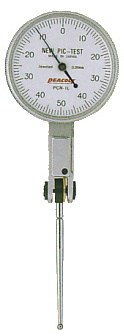

Without stem type V series Our standard Pic Test Indicators have Ø6mm fixed stem. If you do not need it, we can supply Pic Test Indicators without stem or with Dovetail Stem. ( Ø4mm, Ø6mm or Ø8mm ) With Change Lever PC-V series Model PC-1AV Graduation 0.01mm Range 0.5mm Change Lever type Contact Point No. XP1A-2 Model PC-1BV Graduation 0.01mm Range 0.8mm Change Lever type Contact Point No. XP1B-2 Model PC-1LV Graduation 0.01mm Range 1.0mm Change Lever type Contact Point No. XP1L-2 Model PC-2V Graduation 0.002mm Range 0.28mm Change Lever type High accuracy Contact Point No. XP2-2 Without Change Lever PCN-V series Model PCN-1AV Graduation 0.01mm Range 0.5mm Without Change Lever type Contact Point No. XN1A-2 Model PCN-1BV Graduation 0.01mm Range 0.8mm Without Change Lever type Contact Point No. XN1B-2 Model PCN-1LV Graduation 0.01mm Range 1.0mm Without Change Lever type Contact Point No. XN1L-2 Model PCN-2V Graduation 0.002mm Range 0.28mm Without Change Lever type High accuracy Contact Point No. XN2-2 Model PCN-2BV Graduation 0.002mm Range 0.2mm Without Change Lever type High accuracy Contact Point No. XN2B-2 Model PCN-SV Graduation 0.001mm Range 0.14mm Without Change Lever type High accuracy Contact Point No. XNS-2 Specifications Model Graduation (mm) Range (mm) Reading Accuracy MPE (µm)   Measuring force less than (N) 10 Scale 1 Rev. Wide-range Forward accuracy Hysteresis Repeatability PC-1AV 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.4 PC-1BV 0.01 0.8 0 - 40 - 0 5 -- 9 4 3 0.4 PC-1LV 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.4 PC-2V 0.002 0.28 0 - 140 - 0 2 -- 4 3 1 0.4 PCN-1AV 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.3 PCN-1BV 0.01 0.8 0 - 40 - 0 5 -- 9 4 3 0.3 PCN-1LV 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.3 PCN-2V 0.002 0.28 0 - 140 - 0 2 -- 4 3 1 0.3 PCN-2BV 0.002 0.2 0 - 100 - 0 2 -- 4 3 1 0.3 PCN-SV 0.001 0.14 0 - 70 - 0 2 -- 4 3 1 0.3 We also can supply other Pic Test Indicators without Ø6mm fixed stem. Accessories (Option) Dimensions: PC-V series Model L (mm) PC-1AV 21.4 PC-1BV 22.4 PC-1LV 43.0 PC-2V 12.0 Dimensions: PCN-V series Model L (mm) PCN-1AV 21.3 PCN-1BV 22.2 PCN-1LV 42.8 PCN-2V 17.94 PCN-2BV 16.6 PCN-SV 11.7 | HOME | Product Information | Lever Type Dial Indicators | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
