Special Type Test Indicators ; Non-electrifying & Complete Anti-magnetic U series

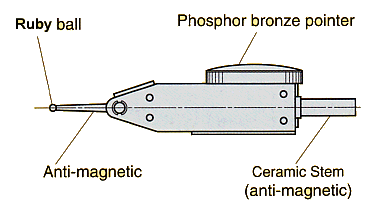

When non-electrifying type of Pic Test or New Pic Test is used, electric flow is blocked   at the ceramic stem, even of a magnetic stand is electrified. Thus, you can continue  your work without any problem.  The dial face is light blue color and easy to read.  Specifications and outer dimensions are the same as those of standard PC and PCN  types, except the portion of stems. Non-electrifying & Complete Anti-magnetic U series    ; Without change lever type (CW rotation only) Model PCN-1AU Graduation 0.01mm Range 0.5mm Contact Point No. XN1A-2R Model PCN-1BU Graduation 0.01mm Range 0.8mm Contact Point No. XN1B-2R Model PCN-1LU Graduation 0.01mm Range 1.0mm Contact Point No. XN1L-2R    (L = 42.8mm) Model PCN-2U Graduation 0.002mm Range 0.28mm Contact Point No. XN2-2R Model PCN-2BU Graduation 0.002mm Range 0.2mm Contact Point No. XN2B-2R Model PCN-SU Graduation 0.001mm Range 0.14mm High accuracy Contact Point No. XNS-2R Non-electrifying & Complete Anti-magnetic U series (Vertical)    ; Without change lever type (CW rotation only) Model PCN-5U Graduation 0.01mm Range 0.5mm Contact Point No. XN1A-2R Model PCN-6U Graduation 0.002mm Range 0.28mm Contact Point No. XN2-2R Specifications Model Graduation (mm) Range (mm) Reading Accuracy MPE (µm)   Measuring force less than (N) 10 Scale 1 Rev. Wide-range Forward accuracy Hysteresis Repeatability PCN-1AU 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.3 PCN-1BU 0.01 0.8 0 - 40 - 0 5 -- 9 4 3 0.3 PCN-1LU 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.3 PCN-2U 0.002 0.28 0 - 140 - 0 2 -- 4 3 1 0.3 PCN-2BU 0.002 0.2 0 - 100 - 0 2 -- 4 3 1 0.3 PCN-SU 0.001 0.14 0 - 70 - 0 2 -- 4 3 1 0.3 PCN-5U 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.3 PCN-6U  0.002  0.28 0 - 140 - 0 2 -- 4 3 1 0.3 Accessories (Option) Dimensions Model L (mm) PCN-1AU 21.3 PCN-1BU 22.2 PCN-1LU 42.8 PCN-2U 17.94 PCN-2BU 16.6 PCN-SU 11.7 Dimensions Model L (mm) PCN-5U 21.3 PCN-6U 17.94 | HOME | Product Information | Lever Type Dial Indicators | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
