Digital Counter ＆ Linear Gauge

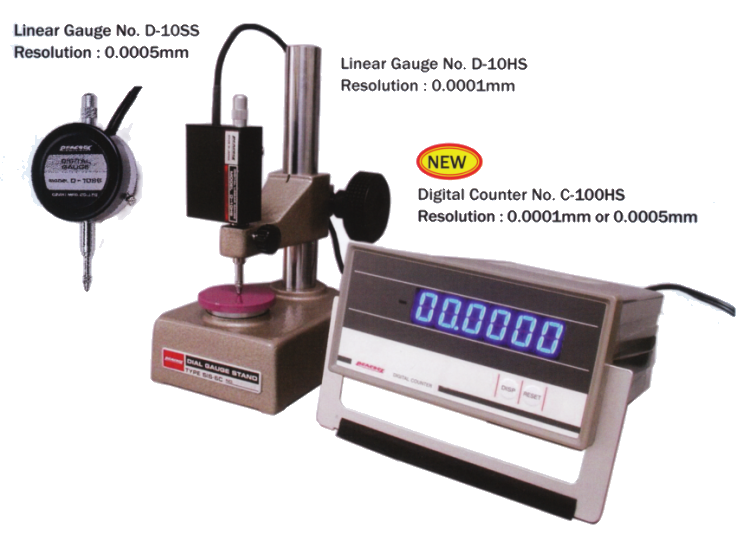

◆ High Resolution Resolution : 0.1µm (Model No. D-10HS)   Resolution : 0.5µm (Model No. D-10SS) ◆ Blue digital display Easy on the eyes (Model No. C-100HS)  ◆ Data communication by USB cable Send directly to EXCEL without any software Specifications Mode No. NEW C-100HS Displayed Digits High-luminance LED (Blue) display with 7 segments 6 digits Resolution (mm) Resolution (inch) 0.0001mm / 0.0005mm （at the time of shipment: 0.0001mm) 0.00001 inch / 0.00005 inch （at the time of shipment: 0.0001mm) Response Speed 200mm / sec. Detector D-10HS (0.0001mm) D-10SS (0.0005mm) Power Supply AC100v - 240v (50 / 60Hz) Power Consumption 8VA or less Ｄisplay Concentration Press the DISP Key : one = Bright, two = Dark, Three = OFF RESET Press more than 100ms the RESET key (at the time of shipment) Data Send Short press the RESET key less than 100ms Data output USB 2.0 standard output (terminal type USB-B) MODE (1) output --- HID (at the time of shipment) 　　　　　　                 Keyboard communication MODE (2) output --- SIMPLE communication with Gauge Inspection Device Input Terminal Gauge input connector : ER03-R8F (Tajimi) Operation Temperature 5℃ -  +40ºC Specifications   Model No. Linear Gauge D-10HS Resolution : 0.0001mm Range : 10mm Linear Gauge D-10SS Resolution : 0.0005mm Range : 10mm Compatible Counter C-100HS Display Setting 0.1µm (0.0001mm) 0.5µm (0.0005mm) Range 10mm Accuracy 0.5µm (0.0005mm) 1µm (0.001mm) Measuring Force Less than 1.2N Cable Lenght 2M Operating Temperature 5 - 40ºC Contact Point Sø 2.4mm X-2 (M2.5 × 0.45) Mounting Method ø 8mm Stem ø 8mm Stem or Lug Back Weight 260g 240g Output Signal Sine wave 2 phase/ 90º / 8µm Pitch Signal Line Connector ER03-PB8M (Tajimi) Accessories Spindle Pull-up lever  Lug Back GB-1DX Options All the replaceable contact point for Dial Gauges can be installed. Optional accessories Foot switch No. SW-1 USB cable (Type A - Type B) Finger Lever No. LL-D20  Gauge Stand Model No. PDS-2 Ceramic Table Size : 100×100mm Model No. SIS-6C Ceramic Table Size : Ø50mm | HOME | Product Information | Digital Indicators | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
