Special Type Test Indicators ; Large dial face D series

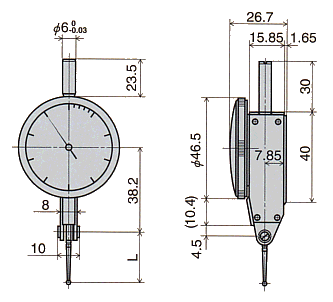

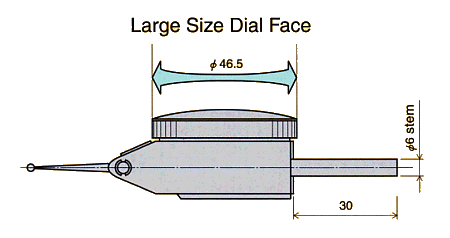

The dial plate size of PCN-1A, PCN-1L, PCN-2B, and PCN-S models has been enlarged, with easy reading due to the lager scale spacing, as a result. Screw type long stems are standard for these large dial face test indicators. Large dial face D series ; Without change lever type (CW rotation only) Model PCN-1AD Graduation 0.01mm Range 0.5mm Contact Point No. XN1A-2 Model PCN-1LD Graduation 0.01mm Range 1.0mm Contact Point No. XN1L-2    (L = 42.8mm) Model PCN-2BD Graduation 0.002mm Range 0.2mm Contact Point No. XN2B-2 Model PCN-SD Graduation 0.001mm Range 0.2mm High accuracy Contact Point No. XN2B-2 Specifications Model Graduation (mm) Range (mm) Reading Accuracy MPE (µm)   Measuring force less than (N) 10 Scale 1 Rev. Wide-range Forward accuracy Hysteresis Repeatability PCN-1AD 0.01 0.5 0 - 25 - 0 5 -- 6 4 3 0.3 PCN-1LD 0.01 1.0 0 - 50 - 0 5 -- 10 5 3 0.3 PCN-2BD 0.002 0.2 0 - 100 - 0 2 -- 4 3 1 0.3 PCN-SD 0.001 0.2 0 - 100 - 0 2 -- 4 3 1 0.3 Accessories (Option) Dimensions Model L (mm) PCN-1AD 21.3 PCN-2BD, PCN-SD 16.6 PCN-1LD 42.8 | HOME | Product Information | Lever Type Dial Indicators | INDEX: Model No. | | Page Top | Design and specifications are subject to change without notice for future improvement.
