Digital Counters
Standard Type
;Discontinued (Only stock is supplied) NEW TYPE C-500/C-700
| * Blue fluorescent light display provides easy reading. * Data output uses BCD codes and is "open collector" type. * These digital counters can be connected to a pass / fail judgement system, D/A conversion system or a printer. |
 |
Digital Counters Standard Type
| Specifications | ||

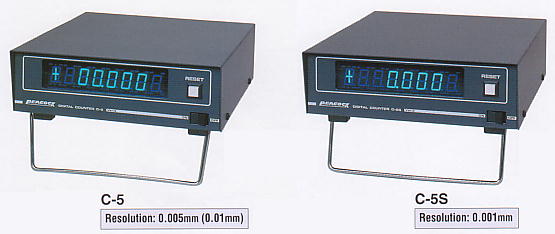

| Model | C-5 | C-5S |
| Resolution | 0.005mm / 0.01mm (0.005mm at time of shipment) | 0.001mm |
| Display | Blue fluorescent light display up to 6 digits with ± symbol | |
| Quantizing error | ± 1 count | |
| Response speed | 1000mm / sec | 600mm / sec |
| Weight | 2.3kg | 2.5kg |
| Power supply | AC100V (90V - 110V) 50 / 60Hz | |
| Outer dimensions | 200(W) × 230(D) × 60(H)mm | |
| Operating temperature |
0 to 40ºC / for storage, at -10 to 50ºC | |
| Compatible linear gauges |
DL-2, D-5, D-10, D-20 D-50, D-100 D-5UZ, D-10N, D-20N |
DL-2S, D-5S, D-10S, D-20S D-50S, D-100S |
| Accessories | * Power supply cable (2m) ---- 1pc * Built-in tilt stand (tilts the front of the counter up at slight angle for easier reading) |
|
| Functions | * RESET ---------- For zero reset at any desired position * DIRECTION ------ Numerical direction can be changed by DIRECTION switch located on back panel * CLOCK OUT ------ Outputs BCD's signal simultaneously (1µsec) * ALARM OUT ----- Output abnormal value when response speed is exceeded * LATCH IN -------- Holds the display value and external unit's output data * RESET IN -------- For zero reset from external unit via RESET input |
|
| Data output (BCD OUT) |
* Output by positive logic, parallel digits and open collector * Connector ----- 57-40360 DDK equivalent connector (amphenol type) should be used. It is not attached on the cable side (57-30360 equivalent connecter is recommended) |
|

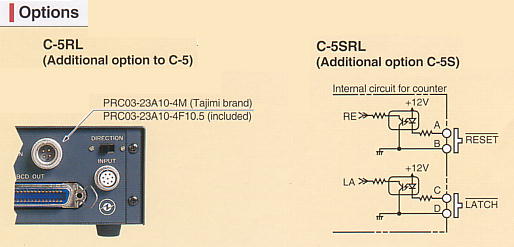

| Options | * Pass/fail judgement (comparator) COM-5, RECORDER (DA converter) DA-4,
Printer (statistic operation) PDP-1 * External RESET/LATCH connector (Use this option when RESET/LATCH command from an external unit) To prevent erroneous operation caused by electrical noise that enters the digital counter, the connector's input is isolated by photocouplers. (BCD output connector's RESET/LATCH is not isolated.) |
|
| Dimensions: (mm) C-5 / C-5S dimensions within ( ) are for CP-5 (CP-5S)  |
||
 |
||
