Digital Counters
with Preset Function
;Discontinued NEW TYPE C-500/C-700
| * Counting can be preset. * Blue fluorescent light display provides easy reading. * Equipped with Multiple display function. (for measurement of diameter and etc.) |
 |

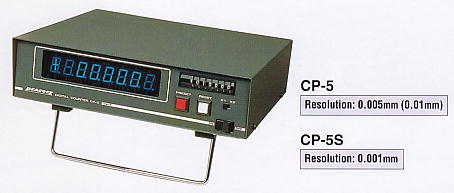

Digital Counters with Preset Function
| Specifications | ||
| Model | CP-5 | CP-5S |
| Resolution | 0.005mm | 0.001mm |
| Display | Blue fluorescent light display up to 6 digits with ± symbol | |
| Quantizing error | ± 1 count | |
| Response speed | 1000mm / sec | 600mm / sec |
| Weight | 2.6kg | 2.5kg |
| Power supply | AC100V (90V - 110V) 50 / 60Hz | |
| Dimensions | 240(W) × 230(D) × 60(H)mm | |
| Operating temperature |
0 to 40ºC / for storage, at -10 to 50ºC | |
| Compatible linear gauges |
DL-2, D-5, D-10, D-20 D-50, D-100 D-5UZ, D-10N, D-20N |
DL-2S, D-5S, D-10S, D-20S D-50S, D-100S |
| Accessories | * Power supply cable (2m) ----- 1 pc * Built-in tilt stand (tilts the front of the counter at slight angle for easier reading) |
|
| Functions | * X1, X2 --------- When switched to X2, the display will automatically
double. * PRESET -------- Preset capability at any position using PRESET switch * RESET --------- Zero reset capability at any position using RESET switch * DIRECTION ----- Numerical direction can be changed by DIRECTION switch located on back panel * CLOCK OUT ---- Outputs BCD's signal simultaneously (1µsec) * ALARM OUT ---- Output abnormal value when response speed is exceeded * LATCH IN ------ Holds the display value and external unit's output data * RESET IN------- For zero reset from external unit via its RESET input |
|
| Data output (BCD OUT) |
* Output by positive logic, parallel digits and open collector * Connector --- 57-40360 DDK equivalent connector (amphenol type) should be used. It is not attached on the cable side. (57-30360 equivalent connector is recommended) |
|
| Options | * Pass/fail judgment (comparator) -------------- COM-6 * Counter (DA converter) ---------------------- DA-4 Printer (with statistic computation function) ---- PDP-1 * External RESET/LATCH function ------------- CP-5RL (additional function to CP-5) (pin arrangement is same as C-5RL) ---------- CP-5SRL (additional function to CP-5S) |
|
| Outline of measurement |
(1) Set digital switches on the panel. (For example, +050.000) (2) Set a master (+050.000mm) on the gauge and press "PRESET" switch (3) Measure work piece (display reads +49.995mm), in case it is -5µm out |
|
| Dimensions: (mm) CP-5 / CP-5S dimensions within (240 ) are for CP-5 (CP-5S)  |
||
