Digital Printer ;Discontinued NEW TYPE PDP-1N-> Discontinued
| * Printing of statistically processed data is vital for quality management. * Input of date and time via front control panel data keys for quality assurance data purposes. * Items for statistic operation maybe selected from Mode 0 to 3. * Out of spec values are printed in red. |
 |
Digital Printer
| Specifications | ||||
| Model | PDP-1 | |||
| Number of channels |
Connect one channel for each measuring device |
Method of date input | BCD positive logic parallel / serial RS-232C port Centronics compatible |
|
| Maximum no. of date |
999 points | |||
| Printing method | Dot style graphic | |||
| Recording paper | Standard paper roll (69mm wide × 50mm dia.) commercially available |
Input data | Measuring date and time, every statistical operation item value Input by data key Delete of any data part by key 4 Arithmetic operations by key (MODE-4) |
|
| Power supply | AC adapter (AC 100V) | |||
| Operating temperature |
0 - 40ºC | |||
| Outer dimensions | 200(W) × 230(D) × 60(H)mm | |||
| Weight | 2kg | Print-out and calculation categories |
A: Measuring date A: Number indicating measured data A: Number of measured data (n) A: Mean value (X) A: Standard deviation (σ) B: Process capability index (Cp) B: Printing in red for abnormal value C: Histogram |
A: Measuring time A: Each data A: Max data A: Min data A: Range (R) B: Defect rate (BAD) C: Frequency distribution table D: Diagram |
| Accessories | * Ink ribbon --- 1 roll (CMB-01-R/B) * Recording paper --- 1 roll (69 × 50) * AC adapter --- 1 pc (PDP-10A) |
|||

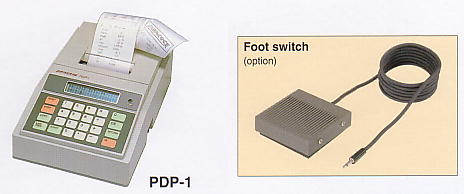

| Options | * Foot switch (FW-1) * Connecting cable (for signal input) |
|||
| Connecting cable selection list | ||||
| Model | Applicable measuring equipment or device |
Function of print-out according to mode |

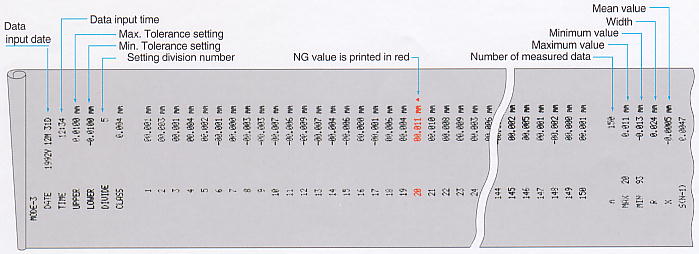

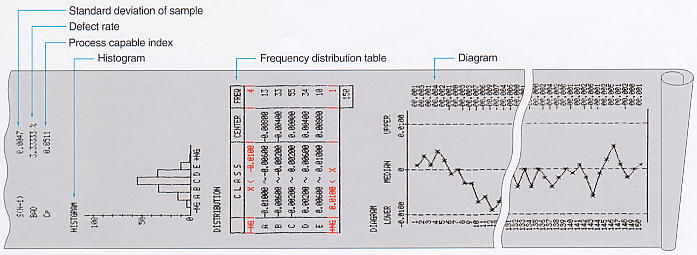

MODE-0 ---- Operation printing of A: items MODE-1 ---- Operation printing of A: to B: MODE-2 ---- Operation printing of A: to C: MODE-3 ---- Operation printing of A: to D: |
|
| KB-C12 | C-5, C-5S Discontinued (Only stock is supplied) |
|||
| C-5SS, CP-5, CP-5S Discontinued |
||||
| C-7HS |
||||
| KB-CM12 | CM-5B | |||
| PP-4, PP-4S Discontinued |
||||
| KB-P12 | PDN-20 | Content displayed in LCD |
* Input items at their initial setting * Number indicating measured data * Resultant statistic operation values |
|
| KB-C205 (with connector) |
DG-205, DG-257 | |||
 |
||||
 |
||||
